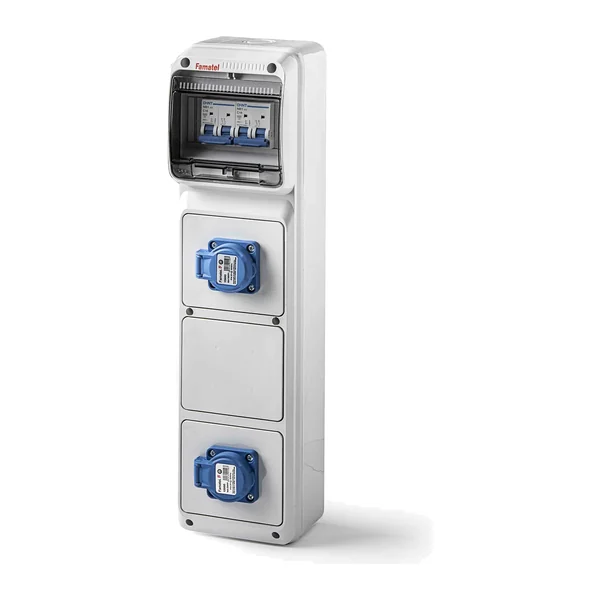

6521 — Enclosure for up to 6 modules /installed 2xMCB 2P/16A/ with sockets: 2×4P 16A, IP54
Manufacturer: Famatel · Code: 6521
€124.69 incl. VAT / pc€103.91 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Industrial distribution board with contacts and protection devices, AcquaCOMBI. 2P+E poles, 16 A, 230 V, IP54 protection rating, dimensions 490 × 125 × 107 mm, 6 modules, 2 sockets, color: light gray. Box for 6 modules; sockets: 2 × Schuko 16 A 220 V; protection devices: 2 automatic circuit breakers 2P / 16 A, curve C, 6 kA.
Technical data
| Section | Industrial socket boards |
|---|---|
| Group | EQUIPPED AND WIRED INDUSTRIAL BOARDS | with SOCKETS and MODULES - AcquaCOMBI IP54 |
| Product type | Industrial board with sockets and protective devices |
| Number of poles | 3 (2P+E) |
| Voltage, V | 230 |
| Current, A | 16 |
| Size | 490 × 125 × 107 mm |
| Degree of protection | IP54 |
| Colour | light grey |
| Number of modules | 6 |
| Number of sockets | 2 |
| Min. qty | 1 |
| Carton | 9 |
| Tariff code (CN/TARIC) | 8537 10 98 (8537109899) |
| Import duty from third countries | 2,1 % |
