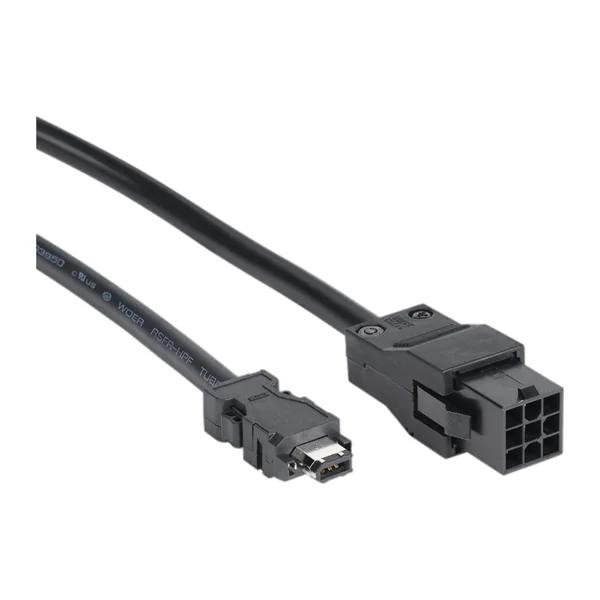

ACS3-CAEF1120 — Incremental encoder cable, 20 m, flexible, CHOGORI IP67 connector, F40–F80 (ASDA-A3 / B3)
Manufacturer: Delta Electronics · Code: ACS3-CAEF1120
€304.30 incl. VAT / pc€253.58 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ACS3-CAEF1120 — incremental encoder cable, 20 m (20000 ± 100 mm), flexible version for moving parts, with moisture-proof CHOGORI connector (IP67, 8 pins) on the motor side. For ECM-A3 and ECM-B3 motors of frame F40–F80, 220 V series only. No battery wires — for an absolute encoder use ACS3-CAEB1120. The standard (non-flexible) version is ACS3-CAEN1120.
Technical data
| Product type | Cable |
|---|---|
| Cable length, m | 20 |
| Accessory type | Encoder cable |
| Series | ASDA-A3 / B3 |
| Suitable for cable carrier (drag chain) | Yes (high-flex cable) |
| Tariff code (CN/TARIC) | 8544 42 90 (8544429090) |
| Import duty from third countries | 3,3 % |
