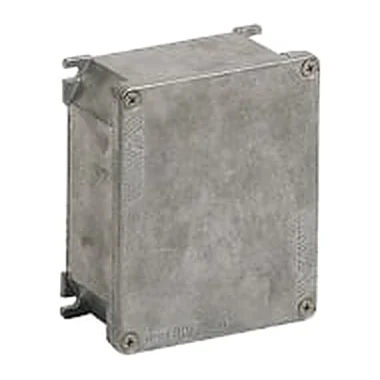

APS 21 — Distribution box AP, unpainted, 315 × 410 × 150 mm (inside 291 × 386 × 126 mm)
Manufacturer: ILME · Code: APS 21
Price on request
Delivered to order — lead time confirmed on request
Description
AP series. Protection class: IP66/IP67. Operating temperature: -40…+110 °C. Material: aluminum die casting; seal: NBR rubber; screws: galvanized steel.
Technical data
| Series | AP |
|---|---|
| Weight, g | 4160 |
| Packaging, pcs | 5 |
| Description in the ILME price list | RAW EMPTY BOX 315x410x150 |
| Packaging: weight, kg | 21,5 |
| Product dimensions, mm | 315 × 410 × 150 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
