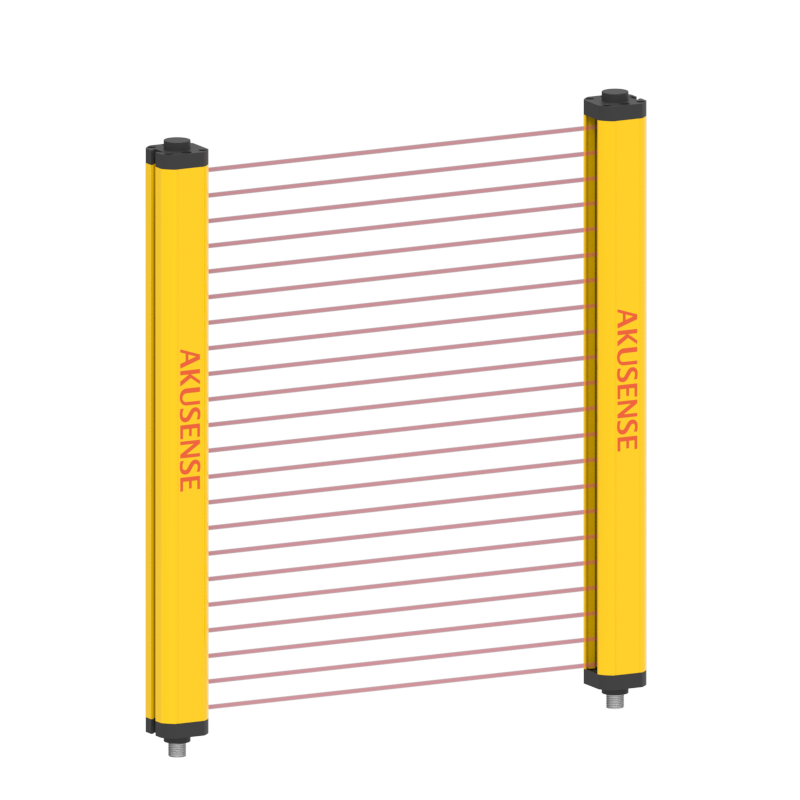

BAL05-T4003V — Light curtain, 40 beams × 5 mm, protective height 195 mm, Analog 1–5 V
Manufacturer: Akusense · Code: BAL05-T4003V
€1,146.88 incl. VAT / pc€955.73 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Light curtains |
|---|---|
| Series | BAL |
| Version | measuring |
| Operating principle | Photoelectric |
| Detection method | Through-beam |
| Housing shape | Profile 36 × 36 mm |
| Measuring range, mm | 3000 |
| Range | 0,3 – 3 m |
| Output | Analogue 1–5 V |
| Output function | Switches off when an object is in the field |
| Power supply | 12–24 V DC ±10 % |
| Load, mA | 150 |
| Response time | ≤ 15 ms |
| Connection | M12 connector, 5-pin |
| Connection type | M12 connector |
| Degree of protection | IP65 |
| Housing material | Aluminium alloy |
| Light source | Infrared LED |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −10 … +55 °C |
| Min. temperature, °C | -10 |
| Max. temperature, °C | 55 |
| Dimensions | 36 × 36 mm |
| Included | Brackets, screws, cable with M12 connector, 5 cores |
| Smallest detectable object | opaque, ≥ ø6.5 mm |
| Beam pitch, mm | 5 |
| Number of beams | 40 |
| Protective height, mm | 195 |
| Curtain height, mm | 256,5 |
| Curtain purpose | Measuring |
| Tariff code (CN/TARIC) | 8537 10 98 (8537109899) |
| Import duty from third countries | 2,1 % |
