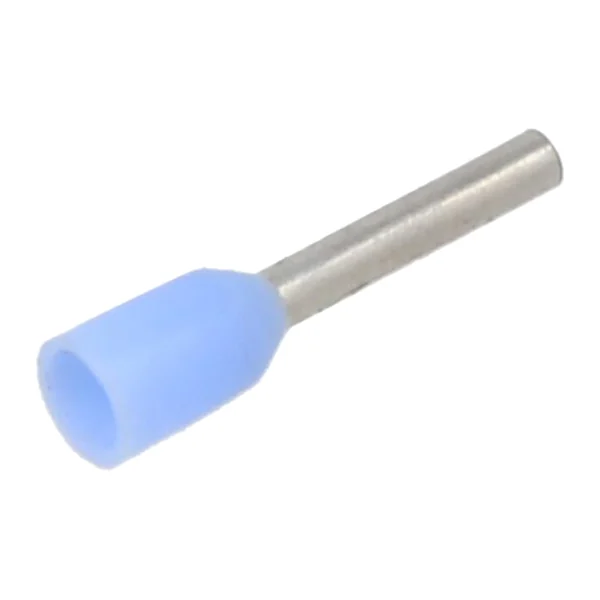

BM005004 — Insulated wire-end ferrule, 0.25 mm², 6 mm, light blue
Manufacturer: BM GROUP · Code: BM005004
€0.04 incl. VAT / pc€0.03 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
BM005004 — insulated ferrule for flexible (stranded) conductor 0.25 mm² (24 AWG), metal ferrule length 6 mm, light blue collar color.
Features: tinned copper contact; polypropylene insulation; up to 105 °C; according to DIN 46228-4; crimp connection.
Application: Crimping the end of a multi-strand conductor before tightening it into a terminal with a screw or spring - the strands do not fray, do not get cut under the screw, and the contact remains stable.
Technical data
| Product type | wire end ferrule |
|---|---|
| Cross-section, mm² | 0,25 |
| Cross-section, AWG | 24 |
| Sleeve length, mm | 6 |
| Colour | light blue |
| Insulation | insulated |
| Contact material | tin-plated copper |
| Insulation material | polypropylene |
| Temperature up to, °C | 105 |
| Standard | DIN 46228-4 |
| Tariff code (CN/TARIC) | 8536 90 10 (8536901000) |
| Import duty from third countries | 0 % |
