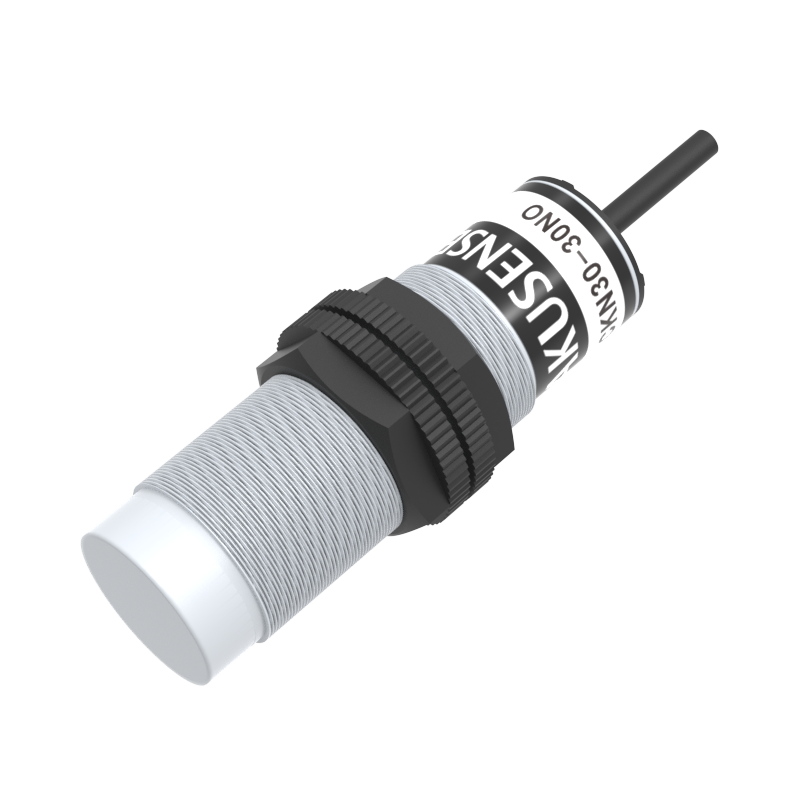

CKN30-30NO — Capacitive sensor M30, non-flush, 30 mm, NPN NO, cable 2 m, 3 cores
Manufacturer: Akusense · Code: CKN30-30NO
€86.88 incl. VAT / pc€72.40 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
CKN30-30NO — M30 capacitive sensor, non-embedded mounting · Sn 30 mm, secure distance 24 mm, adjustment with multi-turn potentiometer · NPN output, normally open (NO) · power supply 10–30 V DC ±10 % · cable 2 m, 3 wires · IP67 · PBT housing and bezel · −25 … +70 °C · M30 × 86 mm.
Technical data
| Category | Capacitive sensors |
|---|---|
| Series | CK |
| Version | cylindrical |
| Operating principle | Capacitive |
| Housing shape | Cylindrical, threaded |
| Size | M30 |
| Mounting | Non-flush |
| Measuring range, mm | 30 |
| Range | Sn = 30 mm |
| Assured operating distance, mm | 24 |
| Output | NPN |
| Output function | NO |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 300 |
| Frequency, Hz | 100 |
| Connection | Cable 2 m, 3 cores |
| Connection type | Cable |
| Degree of protection | IP67 |
| Housing material | PBT |
| Sensing face material | PBT |
| Adjustment | Multi-turn potentiometer |
| Indication | Red LED |
| Protections | reverse polarity, short circuit |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | M30 × 86 mm |
| Weight, g | 142 |
| Repeatability | ≤ 5 % |
| Hysteresis | ≤ 15 % |
| Included | Nuts |
| Standard target | Fe 90 × 90 × 1 mm (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
