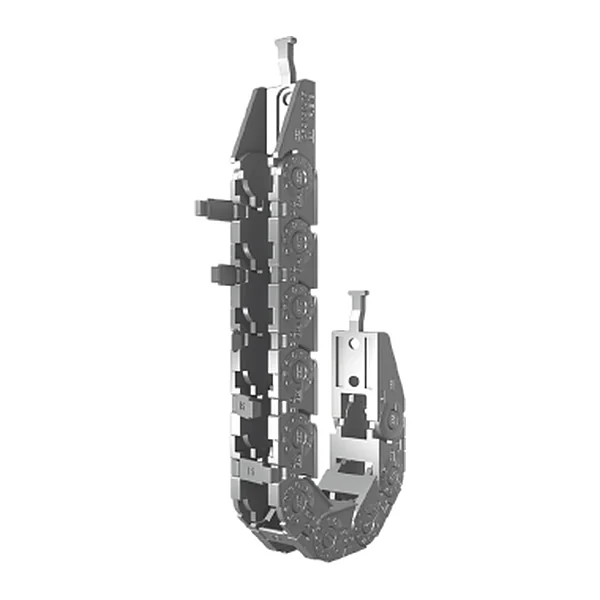

CPS030.50.R75 — Cable chain CPS030, mini, open, 50×19 mm, R75

CPS030.50.R75 — Cable chain CPS030, mini, open, 50×19 mm, R75

Manufacturer: CP System · Code: CPS030.50.R75

€46.44 incl. VAT / m€38.70 excl. VAT

In stock

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

Cable chain CPS030, mini, open, 50×19 mm, R75.

  • The chain length and the end brackets (moving end and fixing end) are selected when ordering.
  • End brackets: tie wrap end bracket B1T/B2T/B3T.

Technical data

SeriesCPS mini Chain CPS030
Product typeMini chain, open type (CPS mini)
Pitch30 mm
Inner width × height50 × 19 mm
Outer width × height64 × 26 mm
Bending radiusR75 mm
Weight0,44 kg/m
Arc length Lp356 mm
Unsupported length Lf148 mm
Installation height H175 mm
Max. vertical length, upward1,5 m
Max. vertical length, downward10 m
Max. side-mounted unsupported length0,6 m
SpeedUp to 6 m/s
Acceleration15 m/s²
MaterialCPS-Amide (PA6 + glass fibre)
Temperature−30 … +130 °C
Noise40 dB (DIN EN 61672-1)
Special designESD, UV
CertificatesCE, ATEX (Ex), RoHS2
End bracketsWith tie wrap B1T/B2T/B3T
