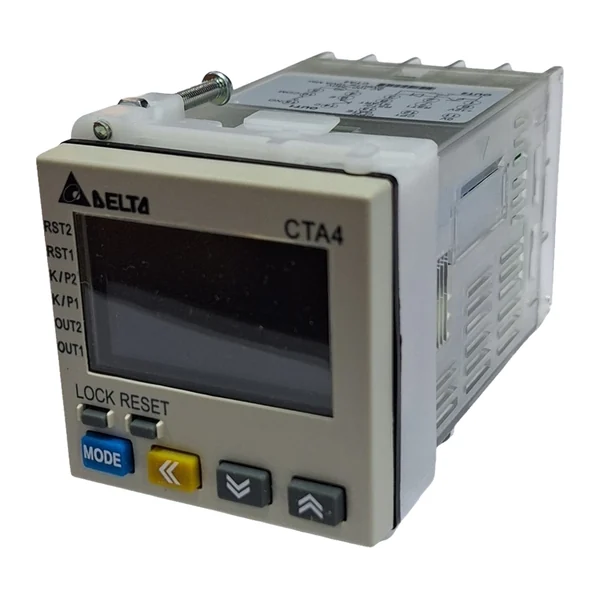

CTA4100A — Counter / timer / tachometer 3 in 1 Delta CTA series, 48 × 48 mm (1/16 DIN), 6-digit dual-line LCD display, 2 setpoints, output 1: SPST relay 250 VAC 5 A, output 2: SPDT relay, 250 VAC, 5 A, supply 100 ~ 240 VAC, 50 / 60 Hz
Manufacturer: Delta Electronics · Code: CTA4100A
€100.39 incl. VAT / pc€83.66 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta CTA series 3-in-1 counter / timer / tachometer, 48 x 48 mm (1/16 DIN), 6-digit double-row LCD display, 2 set points, output 1: SPST relay 250 VAC 5 A, output 2: SPDT relay, 250 VAC, 5 A, power supply 100 ~ 240 VAC, 50 / 60 Hz. Counting speed up to 10 kpps; NPN / PNP inputs; prescaling; single, dual, batch, totalizing, and double counting; sensor power supply 12 VDC 100 mA.
Technical data
| Series | CTA |
|---|---|
| Size | 48 × 48 mm (1/16 DIN) |
| Output 1 | Relay SPST (normally open contact), 250 VAC, 5 A |
| Output 2 | Relay SPDT (changeover contact), 250 VAC, 5 A |
| Communication | None |
| Power supply | 100 ~ 240 VAC, 50 / 60 Hz |
| Tariff code (CN/TARIC) | 9029 10 00 (9029100090) |
| Import duty from third countries | 1,9 % |
