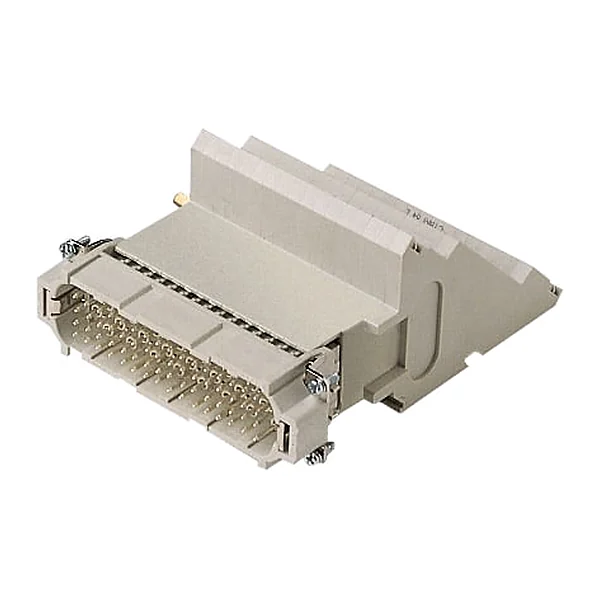

CTM 64 R — Male insert CT, screw terminals, 64 poles + PE, 10 A / 250 V, size 104.27, with built-in terminal block on the right
Manufacturer: ILME · Code: CTM 64 R
Price on request
Delivered to order — lead time confirmed on request
Description
CT series. Connection: screw terminals. Conductor cross-section: 0.75–2.5 mm² (AWG 18–14). Contacts: turned, silver-plated. Data according to EN 61984: 10 A 250 V 4 kV 3; 10 A 230/400 V 4 kV 2. Voltage according to UL/CSA: 600 V. Protection class: IP20 without housing, IP66/IP69 with housing. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connection cycles: ≥ 500.
Technical data
| Series | CT |
|---|---|
| Weight, g | 544 |
| Packaging, pcs | 1 |
| Product type | Insert |
| Gender | male |
| Number of poles | 64 + PE |
| Current, A | 10 |
| Voltage, V | 250 |
| Connection method | screw |
| Size | 104.27 |
| Description in the ILME price list | M INSERT 64P 10A RIGHT |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
