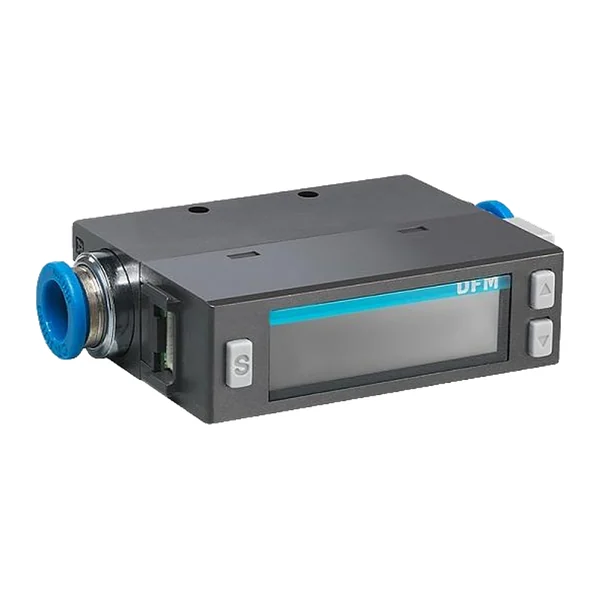

DFM2002AN-C8 — Gas flow meter Delta DFM series, 2 ~ 200 l/min (air, N2)
Manufacturer: Delta Electronics · Code: DFM2002AN-C8
€299.84 incl. VAT / pc€249.87 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta series DFM gas flow meter, 2 ~ 200 l/min (air, N2), 2 NPN digital outputs (OUT2 / IN - common terminal), analog 4 ~ 20 mA, Ø8 mm quick connectors, 24 VDC. Accuracy ±3% of the range; operating pressure 0 ~ 0.75 MPa (max. 1 MPa); displays instantaneous and total flow rate; 2 m cable included.
Technical data
| Series | DFM |
|---|---|
| Size | 55 × 43 × 17 mm (without fittings) |
| Output 1 | 2 × NPN transistor, 30 V / 100 mA |
| Output 2 | Analogue 4 ~ 20 mA |
| Communication | None |
| Power supply | 24 VDC ±10 % |
| Pressure range | 0 ~ 0.75 MPa (flow 2 ~ 200 l/min) |
| Number of alarm outputs | 2 (switching outputs) |
| Tariff code (CN/TARIC) | 9026 80 20 (9026802000) |
| Import duty from third countries | 0 % |
