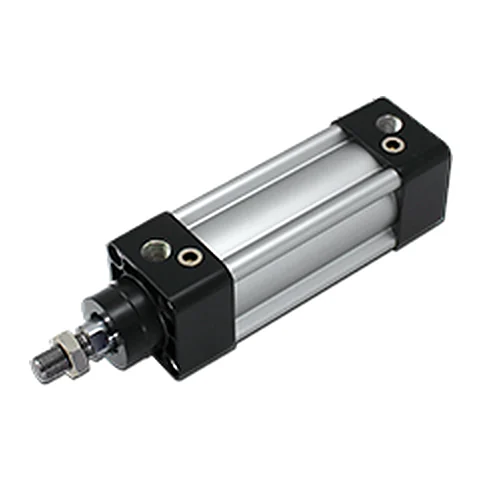

DN 32×200 — Cylinder ISO 15552 DN Ø32×200 mm, double-acting, magnetic piston
Manufacturer: Chelic · Code: DN 32×200
Price on request
In stock
Description
Cylinder ISO 15552 DN Ø32×200 mm, double-acting, magnetic piston.
- DN — Cylinder according to ISO 15552 (equivalent to ISO 6431), double-acting, with adjustable air cushioning.
- Standard magnetic cylinder; pressure 1.5–9 kgf/cm² (150–900 kPa), 0–60 °C, 50–700 mm/s, no lubrication required.
- Standard stroke lengths: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 (350–500) mm; stroke range: 25–500 mm
- Mounting elements optional: FA, FB, TC, CA, CB, LB; sensors 9D/9B/8G/8B, clamps 32F/50F/80F.
- Ø32: connection G 1/8 (dimensions table), thread on the KK rod M10×1.25, rod Ø12.
- DN-32: theoretical force 40 kgf at 5 kgf/cm².
Technical data
| Product type | Pneumatic cylinder ISO 15552 |
|---|---|
| Series | DN |
| Action | Double-acting |
| Magnetic piston | Yes (standard) |
| Cushioning | Adjustable air cushioning at both ends |
| Operating pressure | 0,15–0,9 MPa (1,5–9 kgf/cm²) |
| Operating temperature | 0–60 °C |
| Piston speed | 50–700 mm/s |
| Lubrication | Not required |
| Material | Aluminium alloy |
| Bore diameter, mm | 32 |
| Port thread | G 1/8 |
| Rod thread | M10×1.25 (male) |
| Rod diameter, mm | 12 |
| Theoretical force at 5 kgf/cm² | 40 kgf (push) |
| Stroke, mm | 200 |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
