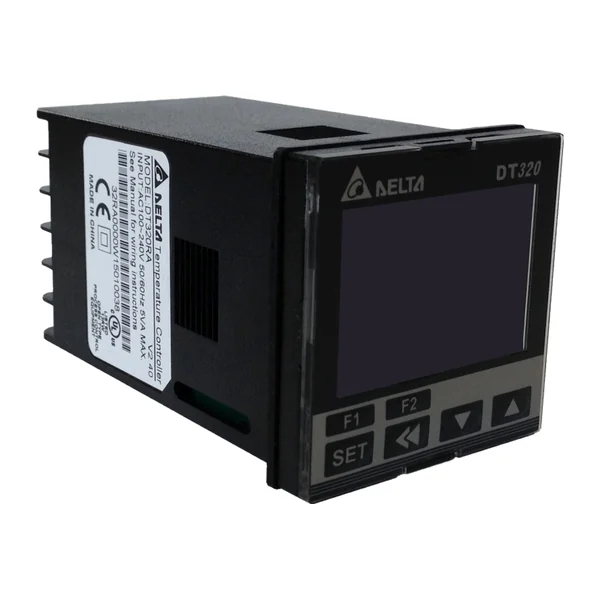

DT320LD-0200 — Intelligent temperature controller Delta DT3 series, 48 × 48 mm (1/16 DIN), output 1: linear voltage, 0 ~ 10 VDC, 2 alarm relay outputs (250 VAC, 3 A), RS-485 Modbus ASCII / RTU, supply 24 VDC
Manufacturer: Delta Electronics · Code: DT320LD-0200
€117.78 incl. VAT / pc€98.15 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta series DT3 intelligent temperature controller, 48 × 48 mm (1/16 DIN), output 1: linear voltage, 0 ~ 10 VDC, 2 alarm relay outputs (250 VAC, 3 A), RS-485 Modbus ASCII / RTU, power supply 24 VDC. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120; 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, 0~50 mV. Control: PID, programmable PID (ramp/soak), fuzzy logic, auto-tuning, ON/OFF, manual; measurement period 0.1 s; tri-color LCD display; user buttons F1 / F2.
Technical data
| Series | DT3 |
|---|---|
| Size | 48 × 48 mm (1/16 DIN) |
| Output 1 | Linear voltage, 0 ~ 10 VDC |
| Output 2 | None |
| Communication | RS-485, Modbus ASCII / RTU, 2 400 ~ 38 400 bps |
| Power supply | 24 VDC |
| Number of alarm outputs | 2 |
| Tariff code (CN/TARIC) | 9032 10 20 (9032102090) |
| Import duty from third countries | 2,8 % |
