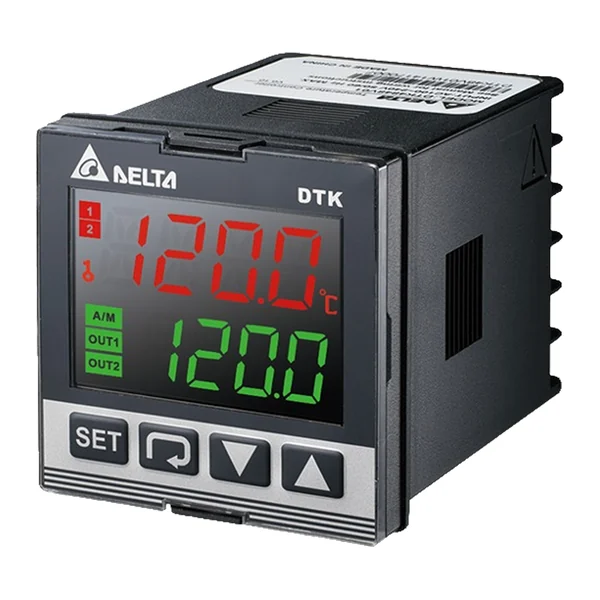

DTK4848C02 — Intelligent temperature controller Delta DTK series, 48 × 48 mm (1/16 DIN)
Manufacturer: Delta Electronics · Code: DTK4848C02
€81.23 incl. VAT / pc€67.69 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta DTK series intelligent temperature controller, 48 x 48 mm (1/16 DIN), depth 60 mm, output: DC current, 4 ~ 20 mA, 2 alarm outputs, power supply 100 ~ 240 VAC. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120. Control: ON / OFF, PID (auto-tuning), manual; measurement period 0.1 s; LCD display - PV red / SV green.
Technical data
| Series | DTK |
|---|---|
| Size | 48 × 48 mm (1/16 DIN) |
| Output 1 | Current, 4 ~ 20 mA |
| Communication | None |
| Power supply | 100 ~ 240 VAC, 50 / 60 Hz |
| Number of alarm outputs | 2 |
| Tariff code (CN/TARIC) | 9032 10 20 (9032102090) |
| Import duty from third countries | 2,8 % |
