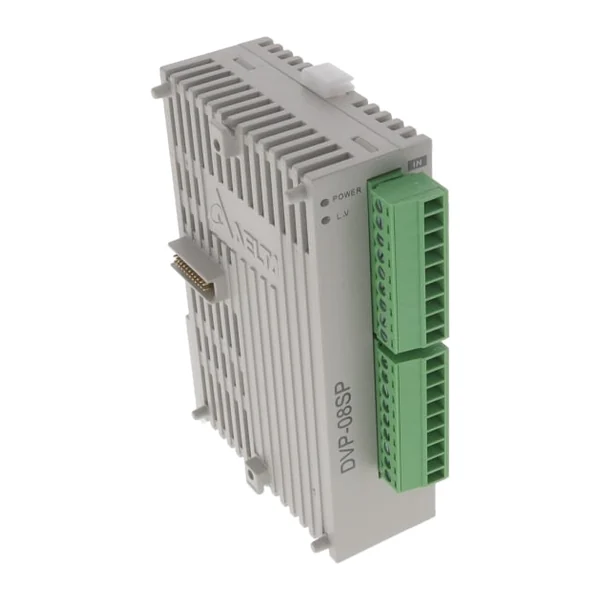

DVP08SP11TS — DVP-S (Module) — Digital module, 4 inputs, 4 outputs transistor (PNP)
Manufacturer: Delta Electronics · Code: DVP08SP11TS
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
DVP08SP11TS — Digital Input/Output module for the DVP-S PLC series, mounted to the right of the processor module. Features: 4 inputs, 24 V DC, sink or source; activation above 16.5 V DC, deactivation below 8 V DC; response time approximately 10 ms; input resistance 4.7 kΩ, isolation 500 V AC; 4 PNP transistor outputs (sourcing), 5–30 V DC; 0.3 A per output, 2 A per common terminal; switching time 15 µs (on), 25 µs (off), up to 100 Hz; isolation 500 V AC; power supply 24 V DC from the processor module; removable terminal block; LED indicators for power and low voltage; mounting on 35 mm DIN rail.
Technical data
| Series | DVP-S |
|---|---|
| Digital inputs | 4 |
| Digital outputs | 4 |
| Additional features | Outputs: PNP transistor |
| Net weight, kg | 0,071 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
