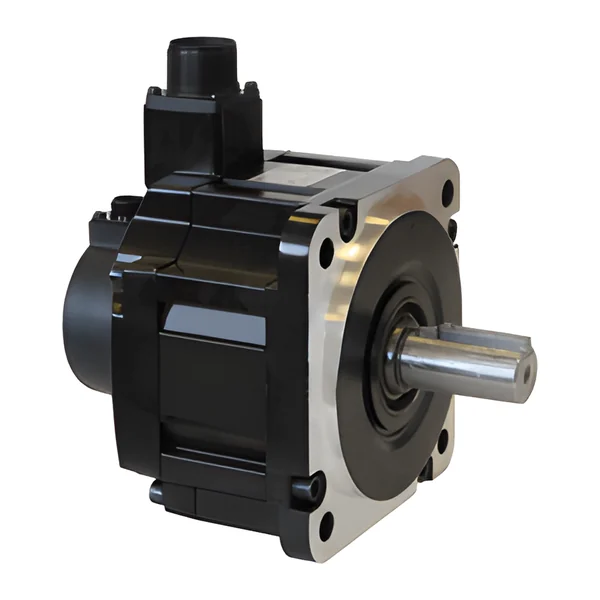

ECM-B3H-F21308S91 — Servo motor ECM-B3H, 0.8 kW, with brake
Manufacturer: Delta Electronics · Code: ECM-B3H-F21308S91
€780.42 incl. VAT / pc€650.35 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-B3H-F21308S91, ECM-B3 AC servo motor 0.8 kW · 230 VAC · 1500 / 4000 rpm max · torque ~5.09 N·m (peak ~15.3 N·m) · 130 mm frame · 24-bit incremental optical encoder (16,777,216 ppr) · with brake for ASDA-B3 and ASDA-A3 (incl. A3-EP) drives.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,8 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 1500 |
| Max. speed, min⁻¹ | 4000 |
| Rated torque, N·m | 5,09 |
| Max. torque, N·m | 15,3 |
| Encoder | incremental optical |
| Encoder resolution, bit | 24 |
| Brake | Yes |
| Series | ASDA-A3 / B3 |
| Compatible drives | ASDA-B3 / A3 (incl. A3-EP) |
| Net weight, kg | 7,5 |
| Tariff code (CN/TARIC) | 8501 52 20 (8501522089) |
| Import duty from third countries | 2,7 % |
