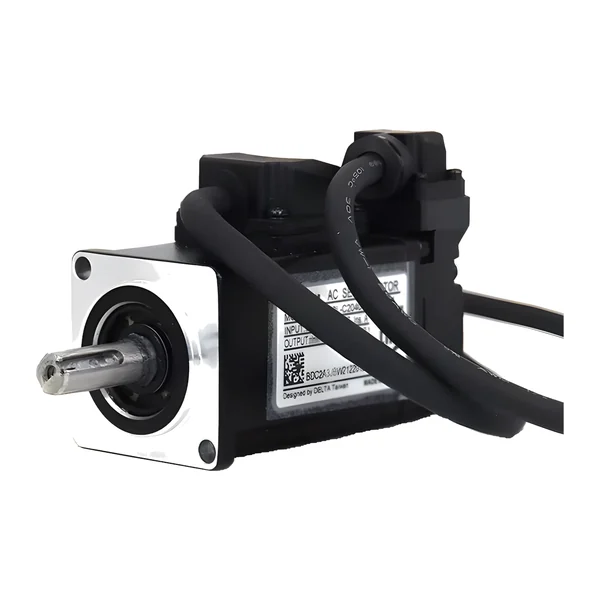

ECM-B3L-CB0401SB1 — Servo motor ECM-B3L, 0.1 kW, with brake
Manufacturer: Delta Electronics · Code: ECM-B3L-CB0401SB1
€531.37 incl. VAT / pc€442.81 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-B3L-CB0401SB1, ECM-B3 AC servo motor 0.1 kW · 230 VAC · 3000 / 6000 rpm max · torque ~0.32 N·m (peak ~0.95 N·m) · 40 mm frame · 24-bit absolute optical encoder (batteryless) (16,777,216 ppr) + 16-bit multi-turn · with brake for ASDA-B3 and ASDA-A3 (incl. A3-EP) drives.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,1 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 3000 |
| Max. speed, min⁻¹ | 6000 |
| Rated torque, N·m | 0,32 |
| Max. torque, N·m | 0,95 |
| Encoder | absolute magnetic-optical, battery-free |
| Encoder resolution, bit | 24 |
| Brake | Yes |
| Series | ASDA-A3 / B3 |
| Compatible drives | ASDA-B3 / A3 (incl. A3-EP) |
| Net weight, kg | 0,7 |
| Tariff code (CN/TARIC) | 8501 51 00 (8501510090) |
| Import duty from third countries | 2,7 % |
