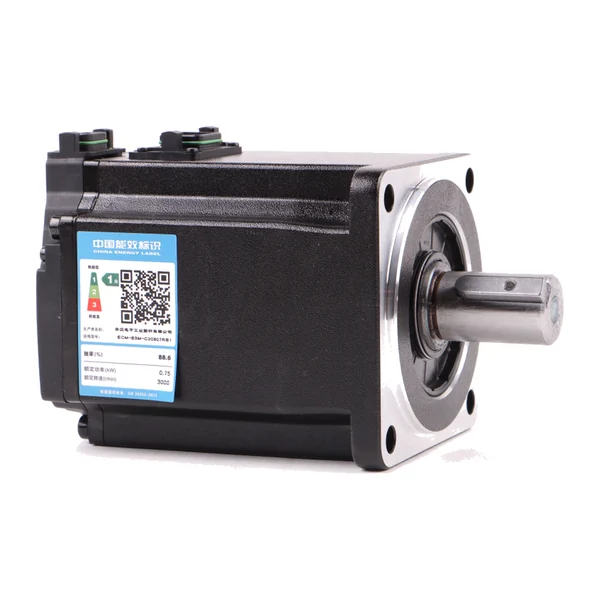

ECM-B3M-CP0804S71 — Servo motor ECM-B3M, 0.4 kW, with brake
Manufacturer: Delta Electronics · Code: ECM-B3M-CP0804S71
€707.32 incl. VAT / pc€589.43 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-B3M-CP0804S71, ECM-B3 AC servo motor 0.4 kW · 230 VAC · 3000 / 6000 rpm max · torque ~1.27 N·m (peak ~3.82 N·m) · 80 mm frame · 17-bit absolute magnetic encoder (single-turn) + 16-bit multi-turn · with brake for ASDA-B3 and ASDA-A3 (incl. A3-EP) drives.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,4 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 3000 |
| Max. speed, min⁻¹ | 6000 |
| Rated torque, N·m | 1,27 |
| Max. torque, N·m | 3,82 |
| Encoder | absolute magnetic-optical |
| Encoder resolution, bit | 17 |
| Brake | Yes |
| Series | ASDA-A3 / B3 |
| Compatible drives | ASDA-B3 / A3 (incl. A3-EP) |
| Net weight, kg | 2,51 |
| Tariff code (CN/TARIC) | 8501 51 00 (8501510090) |
| Import duty from third countries | 2,7 % |
