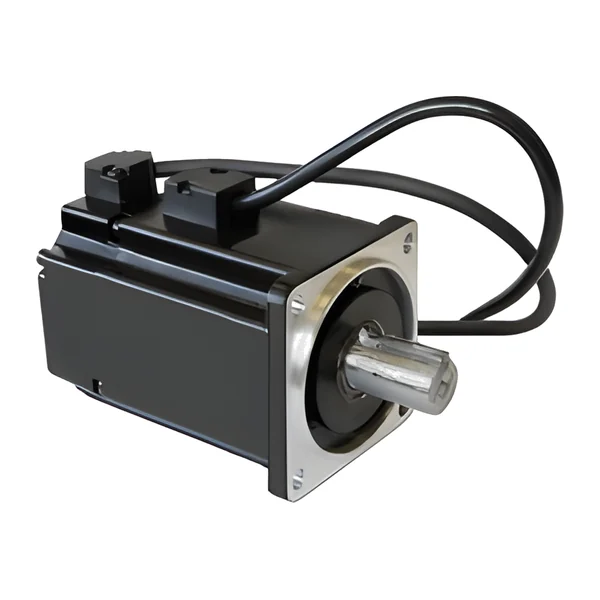

ECM-E3M-CA0807SBE — Servo motor ECM-E3M, 0.75 kW, with brake
Manufacturer: Delta Electronics · Code: ECM-E3M-CA0807SBE
€630.55 incl. VAT / pc€525.46 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-E3M-CA0807SBE, ECM-E3 AC servo motor 0.75 kW · 230 VAC · 3000 / 6000 rpm max · torque ~2.39 N·m (peak ~7.16 N·m) · 80 mm frame · 22-bit absolute optical encoder (4,194,304 ppr) + 16-bit multi-turn · with brake for ASDA-E3 drives.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,75 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 3000 |
| Max. speed, min⁻¹ | 6000 |
| Rated torque, N·m | 2,39 |
| Max. torque, N·m | 7,16 |
| Encoder | absolute magnetic-optical |
| Encoder resolution, bit | 22 |
| Brake | Yes |
| Series | ASDA-E3 |
| Net weight, kg | 3,15 |
| Tariff code (CN/TARIC) | 8501 51 00 (8501510090) |
| Import duty from third countries | 2,7 % |
