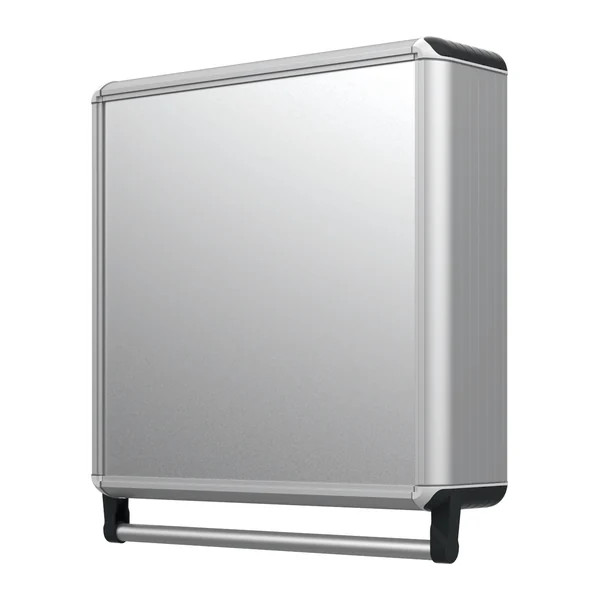

ECO.1200.0112 — Console enclosure ECO 120, 500 × 500 × 120 mm, hinged cover, with one handle — Teknokol
Manufacturer: Teknokol · Code: ECO.1200.0112
Price on request
Delivered to order — lead time confirmed on request
Description
Enclosure for ECO 120 control panel, 500 × 500 × 120 mm, hinged cover, with one handle — Teknokol.
- Main housing ECO 120: internal depth 120 mm; aluminum profiles, front and rear panel made of aluminum, corners are plastic.
- Faceplate size: 500 × 500 mm, mounting depth: 104 mm, hinge cover, with H-profile mounting platform.
- Connection 118 × 65.5 mm - with adapters TK045.830, TK060.830, TK060.826.
- One handle for moving the control panel
- This series is listed in the catalog: table 1200-0100.
Technical data
| Product type | Control console enclosure |
|---|---|
| Series | ECO 120 |
| Width, mm | 500 |
| Height, mm | 500 |
| Depth, mm | 120 |
| Mounting depth, mm | 104 |
| Rear cover | hinged |
| H-profile mounting platform | yes |
| Connection to the arm | 118 × 65,5 mm |
| Handles | 1 |
| Material | aluminium profiles and panels, plastic corners |
| Colour | natural aluminium, anthracite corners |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
