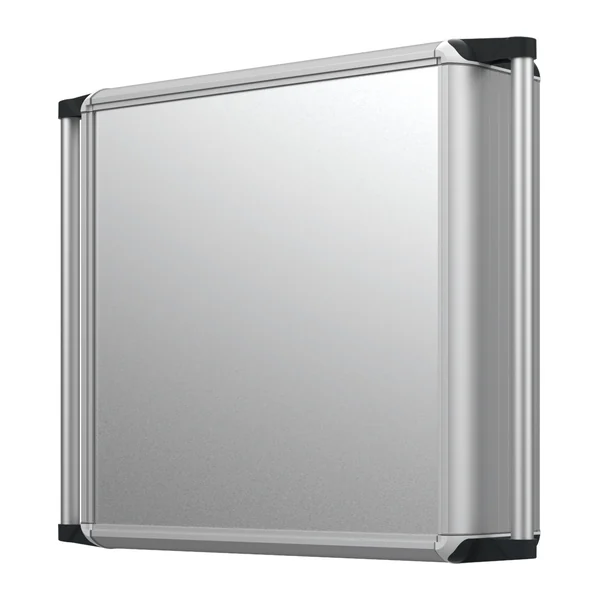

ECO.1200.0209 — Console enclosure ECO 120, 400 × 400 × 120 mm, screw-on cover, with two handles — Teknokol
Manufacturer: Teknokol · Code: ECO.1200.0209
Price on request
Delivered to order — lead time confirmed on request
Description
Enclosure for ECO 120 control panel, 400 × 400 × 120 mm, screw-on cover, with two handles - Teknokol.
- Main housing ECO 120: internal depth 120 mm; aluminum profiles, front and rear panel made of aluminum, corners are plastic.
- Front plate size: 400 × 400 mm, mounting depth: 120 mm, screw cover on the back.
- Connection 118 × 65.5 mm - with adapters TK045.830, TK060.830, TK060.826.
- Two handles for moving the control panel
- This series is listed in the catalog: table 1200-0200.
Technical data
| Product type | Control console enclosure |
|---|---|
| Series | ECO 120 |
| Width, mm | 400 |
| Height, mm | 400 |
| Depth, mm | 120 |
| Mounting depth, mm | 120 |
| Rear cover | screw-fixed |
| H-profile mounting platform | no |
| Connection to the arm | 118 × 65,5 mm |
| Handles | 2 |
| Material | aluminium profiles and panels, plastic corners |
| Colour | natural aluminium, anthracite corners |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
