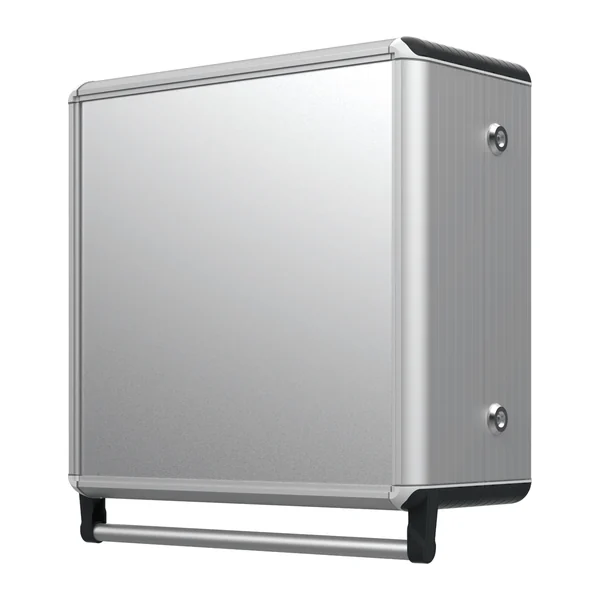

ECO.1290.0115 — Console enclosure ECO 120 +90, 500 × 600 × 210 mm, screw-on cover, with one handle — Teknokol
Manufacturer: Teknokol · Code: ECO.1290.0115
Price on request
Delivered to order — lead time confirmed on request
Description
Enclosure for ECO 120 +90 control panel, 500 × 600 × 210 mm, screw cover, with one handle — Teknokol.
- ECO 120 with extension - internal depth 210 mm; both parts open in the middle with a hinge and latch.
- Front plate size: 500 × 600 mm, mounting depth: 210 mm, screw cover on the back.
- Connection 118 × 65.5 mm - with adapters TK045.830, TK060.830, TK060.826.
- One handle for moving the control panel
- This series is listed in the catalog: table 1290-0100.
Technical data
| Product type | Control console enclosure |
|---|---|
| Series | ECO 120 +90 |
| Width, mm | 500 |
| Height, mm | 600 |
| Depth, mm | 210 |
| Mounting depth, mm | 210 |
| Rear cover | screw-fixed |
| H-profile mounting platform | no |
| Connection to the arm | 118 × 65,5 mm |
| Handles | 1 |
| Material | aluminium profiles and panels, plastic corners |
| Colour | natural aluminium, anthracite corners |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
