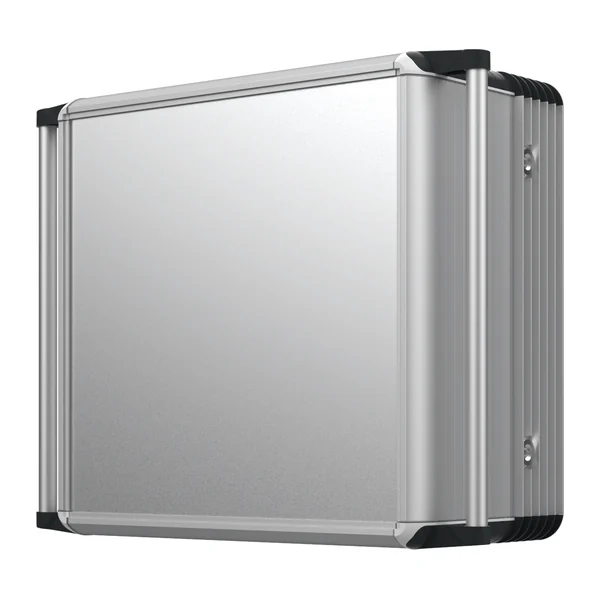

ECO.1591.0213 — Console enclosure ECO 150 +91, 500 × 500 × 240 mm, screw-on cover, with two handles — Teknokol
Manufacturer: Teknokol · Code: ECO.1591.0213
Price on request
Delivered to order — lead time confirmed on request
Description
Control panel enclosure ECO 150 +91, 500 × 500 × 240 mm, screw-on cover, with two handles — Teknokol.
- ECO 150 with extension - internal depth 240 mm; both parts open in the middle with a hinge and latch.
- The extension has external ribs through which heat is dissipated from the inside.
- Front size: 500 × 500 mm, mounting depth: 240 mm, screw cover on the back.
- Connection Ø130 mm - with flanges TK060.320, TK060.400, TK120.320, TK120.400.
- Two handles for moving the control panel
- This series is listed in the catalog: table 1591-0200.
Technical data
| Product type | Control console enclosure |
|---|---|
| Series | ECO 150 +91 |
| Width, mm | 500 |
| Height, mm | 500 |
| Depth, mm | 240 |
| Mounting depth, mm | 240 |
| Rear cover | screw-fixed |
| H-profile mounting platform | no |
| Connection to the arm | Ø130 mm |
| Handles | 2 |
| Material | aluminium profiles and panels, plastic corners |
| Colour | natural aluminium, anthracite corners |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
