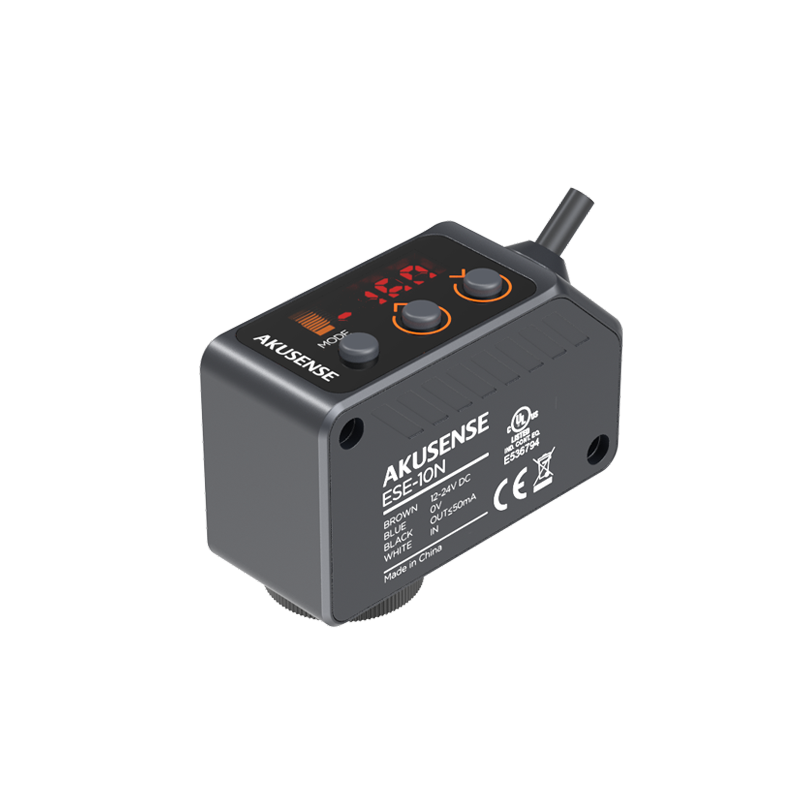

ESE-10N — Photoelectric sensor, diffuse, 7 – 13 mm, NPN, light-on/dark-on, switchable, cable 2 m, 4 cores
Manufacturer: Akusense · Code: ESE-10N
€213.62 incl. VAT / pc€178.02 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Photoelectric sensors |
|---|---|
| Series | ESE |
| Version | for marks and contrast |
| Operating principle | Photoelectric |
| Detection method | Diffuse |
| Housing shape | Rectangular |
| Measuring range, mm | 13 |
| Range | 7 – 13 mm |
| Output | NPN |
| Output function | Light-on/dark-on, selectable |
| Power supply | 12–24 V DC ±10 % |
| Load, mA | 50 |
| Frequency, Hz | 10000 |
| Response time | contrast 0.05 ms; colour 0.2 ms |
| Connection | Cable 2 m, 4 cores |
| Connection type | Cable |
| Degree of protection | IP67 |
| Housing material | PC |
| Light source | RGB LED 625/470/525 nm |
| Adjustment | Push button |
| Indication | Output — orange; 4-digit display |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −10 … +50 °C |
| Min. temperature, °C | -10 |
| Max. temperature, °C | 50 |
| Dimensions | 57 × 35 × 24 mm |
| Weight, g | 50 |
| Included | Screws |
| Light spot | 1.0 × 6.0 mm at 10 mm |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
