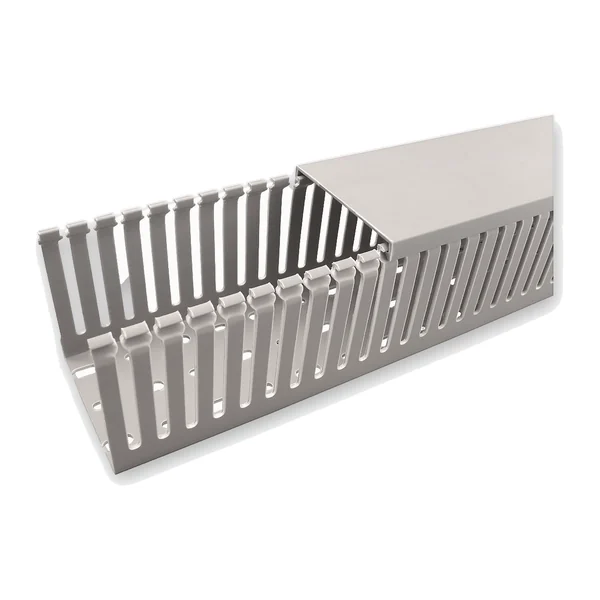

HVDR4050F — Perforated cable trunking (narrow slots), 40 × 50 mm, grey, 2 m
Code: HVDR4050F
€8.22 incl. VAT / pc€6.85 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
HVDR4050F — Perforated cable duct with narrow slots, 40 x 50 mm (W x H), gray RAL 7030, 2 m, with bottom cover.
Features: 4 mm slot, 6 mm tooth; V-shaped slot opening, teeth secure the inserted conductor, smooth edges without burrs; cover is flush with the walls and does not slide during vibration and vertical mounting; capacity for 60-70 conductors of 2.0 mm²; rigid PVC, lead-free, low halogen content, UL94 V-0; -40 … +65 °C (short-term up to 85 °C); bottom with mounting holes.
Application: wiring of mounting plates with high density - the narrow slots distribute the conductors more densely to the devices.
Technical data
| Category | Cable ducts |
|---|---|
| Series | HVDRF |
| Type | slotted duct (narrow slots) |
| Dimensions, mm | 40 × 50 |
| Width, mm | 40 |
| Height, mm | 50 |
| Slot, mm | 4 |
| Finger, mm | 6 |
| Conductor cross-sections | 60–70 × 2,0 mm² |
| Length, m | 2 |
| Mounting | on a plate — holes in the base |
| Material | lead-free PVC, low halogen content |
| Colour | grey RAL 7030 |
| Flammability class | UL94 V-0 |
| Operating temperature, °C | −40 … +65 |
| Standards and certificates | UL (E306674), CE to EN 50085, RoHS, REACH |
| Application | wiring of mounting plates |
| Tariff code (CN/TARIC) | 3926 90 97 (3926909790) |
| Import duty from third countries | 6,5 % |
