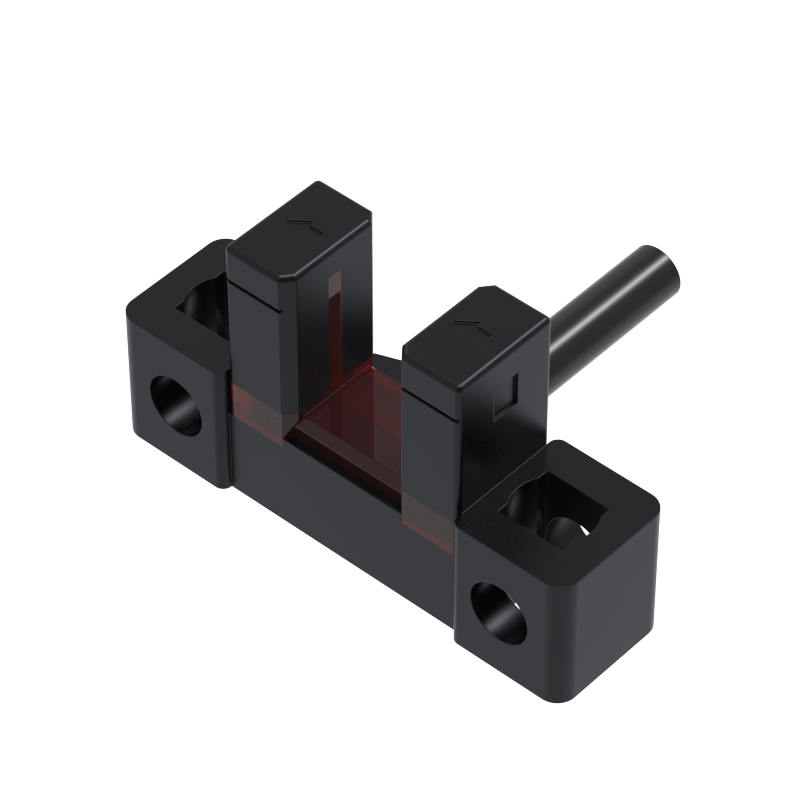

SL-305PA-SW — Fork sensor, infrared, slot 5 mm, PNP, cable 2 m, 4 cores
Manufacturer: Akusense · Code: SL-305PA-SW
€10.64 incl. VAT / pc€8.87 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Fork sensors |
|---|---|
| Series | S-30 |
| Version | fork, 5 mm slot |
| Operating principle | Photoelectric |
| Detection method | Through-beam |
| Housing shape | L-type fork |
| Output | PNP |
| Output function | Light-on/dark-on, selectable |
| Power supply | 5–24 V DC |
| Load, mA | 50 |
| Frequency, Hz | 3000 |
| Response time | ≤ 0,16 ms |
| Connection | Cable 2 m, 4 cores |
| Connection type | Cable |
| Degree of protection | IP50 |
| Housing material | PBT |
| Light source | Infrared LED 940 nm |
| Indication | Switches off when an object is present |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −25 … +55 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 55 |
| Dimensions | 26 × 14,6 × 7 mm |
| Weight, g | 26 |
| Repeatability | < 0,03 mm |
| Hysteresis | < 0,03 mm |
| Slot width, mm | 5 |
| Slot depth, mm | 8,5 |
| Smallest detectable object | 1.2 × 1.8 mm opaque |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
