SQL3 6-02 — Push-in fitting, angled 90° Ø6 – R 1/4, external thread, Chelic SQL3
Manufacturer: Chelic · Code: SQL3 6-02
€2.94 incl. VAT / pc€2.45 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description

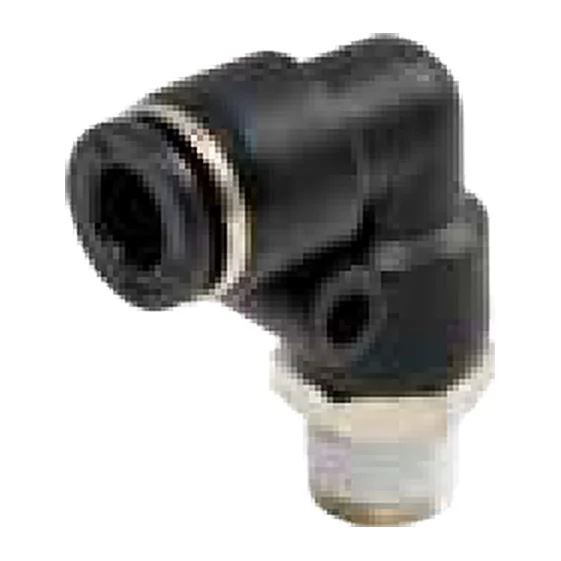

Push-in fitting, 90° elbow, Ø6 – R 1/4, male thread, Chelic SQL3.
- SQ3 series - for PU or nylon tube (the SQ series without "3" is only for PU tube).
- Stainless steel collet, tube release by pressing the button (POM).
- Thread with sealant applied.
- Maximum pressure 9 kgf/cm² (900 kPa), test pressure 10 kgf/cm², vacuum up to −100 kPa, 5–60 °C.
- SQL3 6-02: pipe Ø6, thread R 1/4, key 14 mm, L2 28.2 mm, L3 19.2 mm
- Port thread: R 1/4 (PT, conical).
Technical data
| Product type | Push-in elbow 90°, male thread |
|---|---|
| Series | SQ3 |
| Tube, Ø mm | 6 |
| Port thread | R 1/4 |
| Wrench size, mm | 14 |
| Dimensions L2 × L3, mm | 28,2 × 19,2 |
| Thread length L1, mm | 9,5 |
| Operating pressure | up to 0.9 MPa (9 kgf/cm²) |
| Proof pressure | 1,0 MPa (10 kgf/cm²) |
| Vacuum | up to −100 kPa (10 Torr) |
| Operating temperature | 5–60 °C |
| Material | nickel-plated brass body; plastic parts NYLON, PBT, PP |
| Operating medium | air |
| Tariff code (CN/TARIC) | 3917 40 00 (3917400099) |
| Import duty from third countries | 6,5 % |
