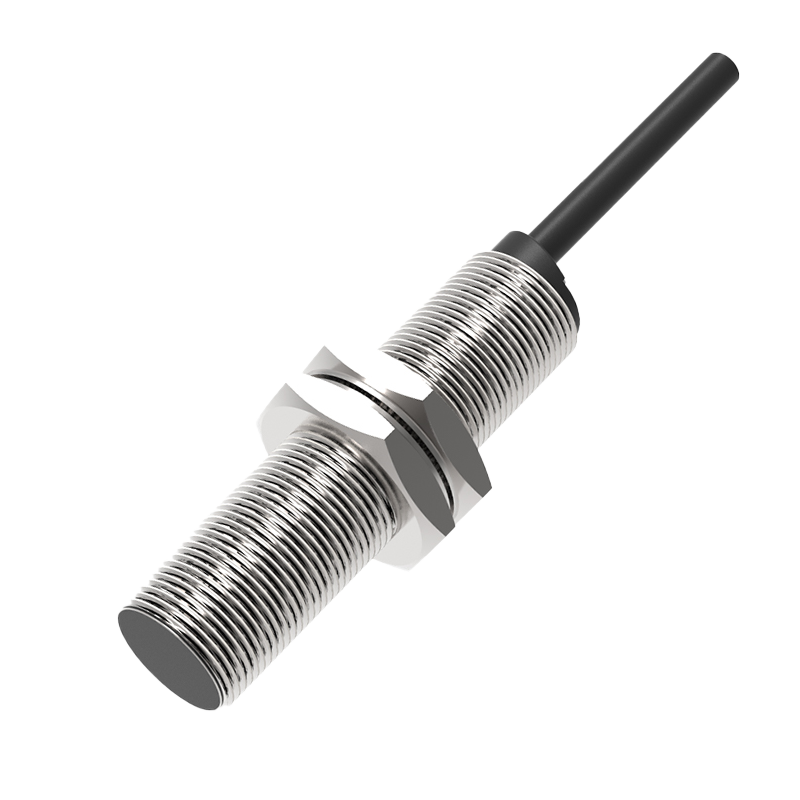

TAF12-03PV — Inductive sensor M12, flush, 3 mm, PNP + analog 0–10 V NO, cable 2 m, 3 cores
Manufacturer: Akusense · Code: TAF12-03PV
€73.00 incl. VAT / pc€60.83 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TA |
| Version | with analogue output |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M12 |
| Mounting | Flush |
| Measuring range, mm | 3 |
| Range | 0,3 – 3 mm |
| Assured operating distance, mm | 2,4 |
| Output | PNP + analogue 0–10 V |
| Output function | NO |
| Power supply | 18–30 V DC ±10 % |
| Frequency, Hz | 100 |
| Connection | Cable 2 m, 3 cores |
| Connection type | Cable |
| Degree of protection | IP67 |
| Housing material | Nickel-plated brass |
| Sensing face material | PBT |
| Protections | reverse polarity |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | M12 × 50 mm |
| Weight, g | 54 |
| Repeatability | 0,02 mm |
| Hysteresis | 20 % |
| Included | Nuts |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
