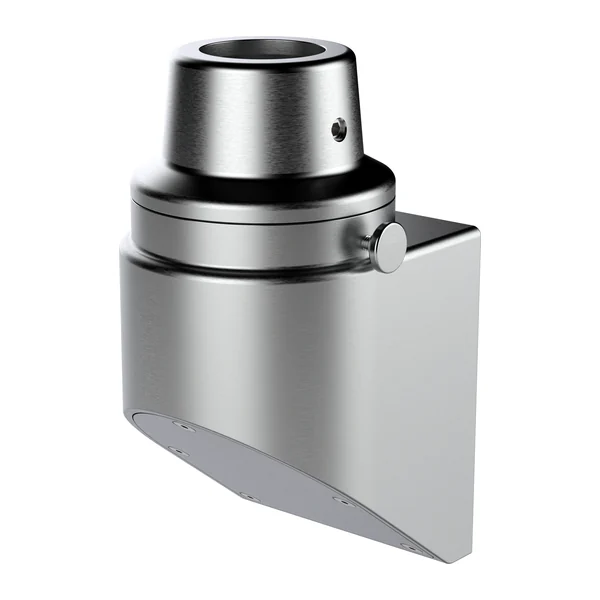

TK048.710 — Rotating wall hinge, 115 × 220 × 128 mm — Teknokol TK048
Manufacturer: Teknokol · Code: TK048.710
Price on request
Delivered to order — lead time confirmed on request
Description
Rotating wall bracket, 115 × 220 × 128 mm — Teknokol TK048.
- Rotating wall bracket, 115 × 220 × 128 mm, made of AISI 304 stainless steel, for arms with a diameter of 48.3 mm, TK048 series.
- Wall mountable, with four bolts
- Satin finish, protection class IP66 - for the food and pharmaceutical industries.
- Rotation angle ±165°
- Weight 5.21 kg, dimensions 115 × 220 × 128 mm (W × H × D)
Technical data
| Product type | Hinge |
|---|---|
| System | TK048 |
| Material | stainless steel AISI 304 |
| Colour | satin finish |
| Degree of protection | IP66 |
| Version | rotating |
| Rotation | ±165° |
| Weight, kg | 5,21 |
| Dimensions, mm | 115 × 220 × 128 |
| Tariff code (CN/TARIC) | 8302 49 00 (8302490099) |
| Import duty from third countries | 2,7 % |
