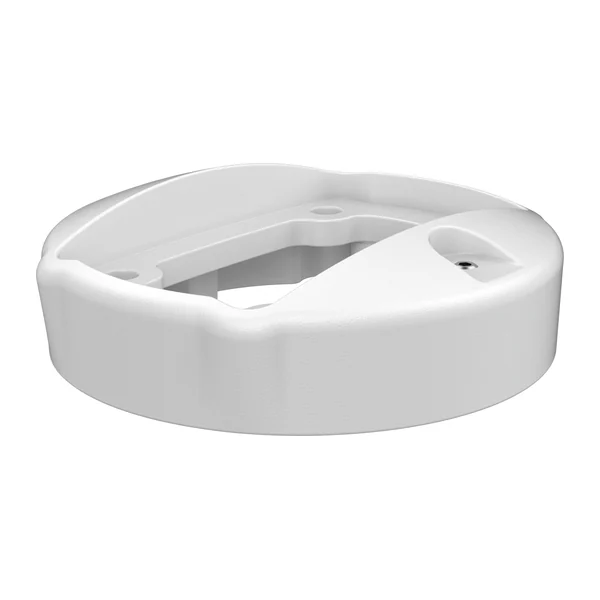

TK120.310 — Connection flange Ø130 mm to the console, fixed — Teknokol TK120
Manufacturer: Teknokol · Code: TK120.310
€122.42 incl. VAT / pc€102.01 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Fixed flange Ø130 mm to the control panel — Teknokol TK120.
- Connects the arm to the control panel housing via a flange Ø130 mm; fixed, non-rotating - for deep housings (ECO 150 and larger).
- Weight 0.61 kg, dimensions 132 × 38 × 132 mm (W × H × D)
- According to the compatibility table, it fits ECO 120 and ECO 150 enclosures (for ECO 060 and 090, an adapter is required — only available with screw or hinged intermediate connection).
Technical data
| Product type | Connection flange |
|---|---|
| System | TK120 |
| Version | fixed |
| Material | aluminium |
| Colour | RAL 7035 |
| Weight, kg | 0,61 |
| Dimensions, mm | 132 × 38 × 132 |
| Degree of protection | IP65 |
| Tariff code (CN/TARIC) | 7616 99 90 (7616999099) |
| Import duty from third countries | 6 % |
