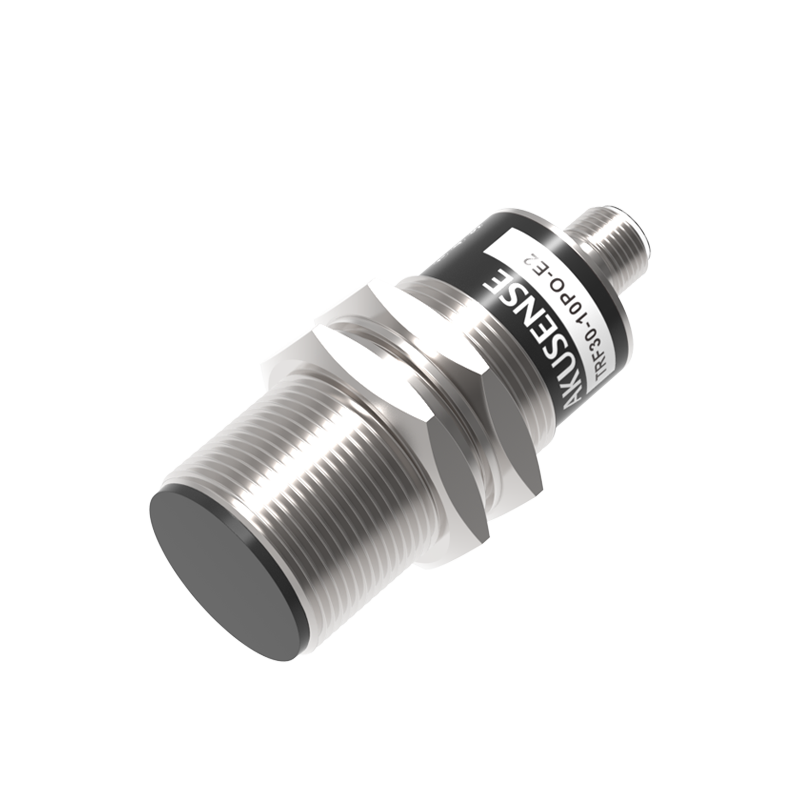

TLF30-16PO-E2 — Inductive sensor M30, flush, 16 mm, PNP NO, M12 connector, 4 pins
Manufacturer: Akusense · Code: TLF30-16PO-E2
€67.72 incl. VAT / pc€56.43 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TL |
| Version | double range |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M30 |
| Mounting | Flush |
| Measuring range, mm | 16 |
| Range | Sn = 16 mm |
| Assured operating distance, mm | 12,8 |
| Output | PNP |
| Output function | NO |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 150 |
| Frequency, Hz | 150 |
| Connection | M12 connector, 4-pin |
| Connection type | M12 connector |
| Degree of protection | IP67 |
| Housing material | Nickel-plated brass |
| Sensing face material | PBT |
| Indication | Red LED |
| Protections | reverse polarity, short circuit, overload |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | M30 × 78 mm |
| Weight, g | 120 |
| Repeatability | ≤ 3 % |
| Hysteresis | ≤ 15 % |
| Included | Nuts |
| Standard target | Fe 48 × 48 × 1 mm (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
