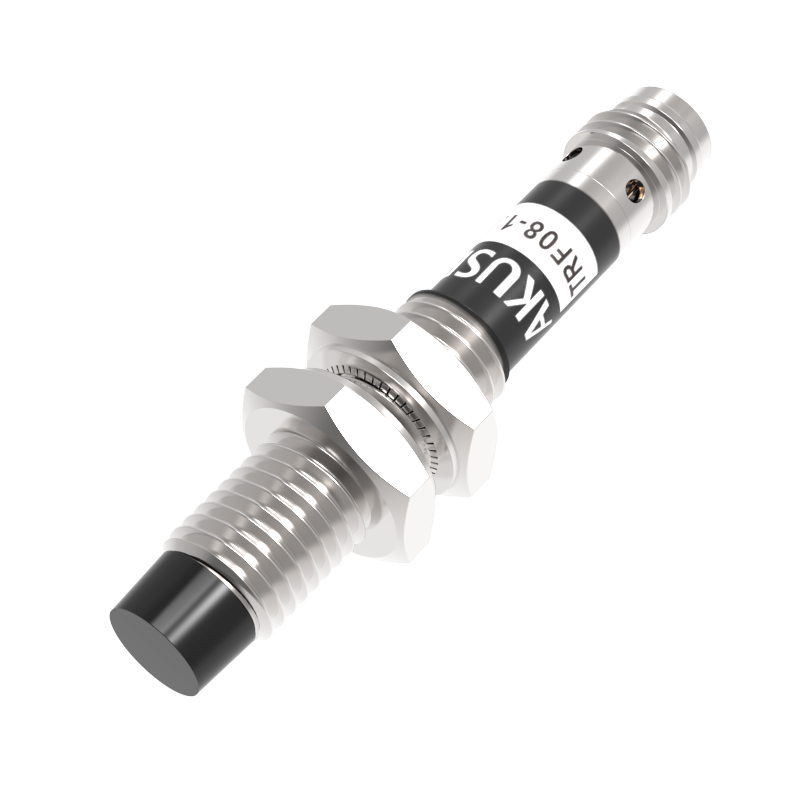

TLN08-04NO-E1 — Inductive sensor M8, non-flush, 4 mm, NPN NO, connector M8, 3 pins
Manufacturer: Akusense · Code: TLN08-04NO-E1
€40.55 incl. VAT / pc€33.79 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TL |
| Version | double range |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M8 |
| Mounting | Non-flush |
| Measuring range, mm | 4 |
| Range | Sn = 4 mm |
| Assured operating distance, mm | 3,2 |
| Output | NPN |
| Output function | NO |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 150 |
| Frequency, Hz | 800 |
| Connection | M8 connector, 3-pin |
| Connection type | M8 connector |
| Degree of protection | IP67 |
| Housing material | Stainless steel |
| Sensing face material | PBT |
| Indication | Yellow LED |
| Protections | reverse polarity, short circuit, overload |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | M8 × 49 mm |
| Weight, g | 7 |
| Repeatability | ≤ 3 % |
| Hysteresis | ≤ 15 % |
| Included | Nuts |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
