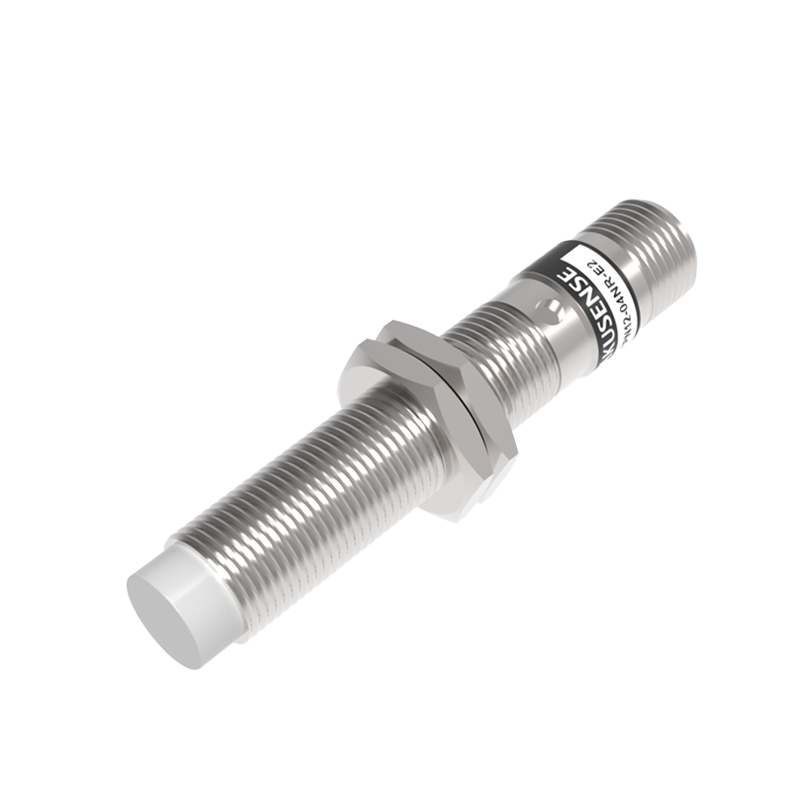

TPN12-08NR-E2 — Inductive sensor M12, non-flush, 8 mm, NPN NO/NC, switchable, M12 connector, 4 pins
Manufacturer: Akusense · Code: TPN12-08NR-E2
€113.76 incl. VAT / pc€94.80 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TP |
| Version | IP69K, for food industry |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M12 |
| Mounting | Non-flush |
| Measuring range, mm | 8 |
| Range | Sn = 8 mm |
| Assured operating distance, mm | 6,4 |
| Output | NPN |
| Output function | NO/NC, selectable |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 200 |
| Frequency, Hz | 2000 |
| Connection | M12 connector, 4-pin |
| Connection type | M12 connector |
| Degree of protection | IP69K |
| Housing material | Stainless steel |
| Sensing face material | PPS |
| Indication | Red LED |
| Protections | reverse polarity, short circuit |
| Operating temperature | −40 … +80 °C |
| Min. temperature, °C | -40 |
| Max. temperature, °C | 80 |
| Dimensions | M12 × 64,6 mm |
| Weight, g | 30 |
| Repeatability | ≤ 5 % |
| Hysteresis | 1–20 % |
| Included | Nuts |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
