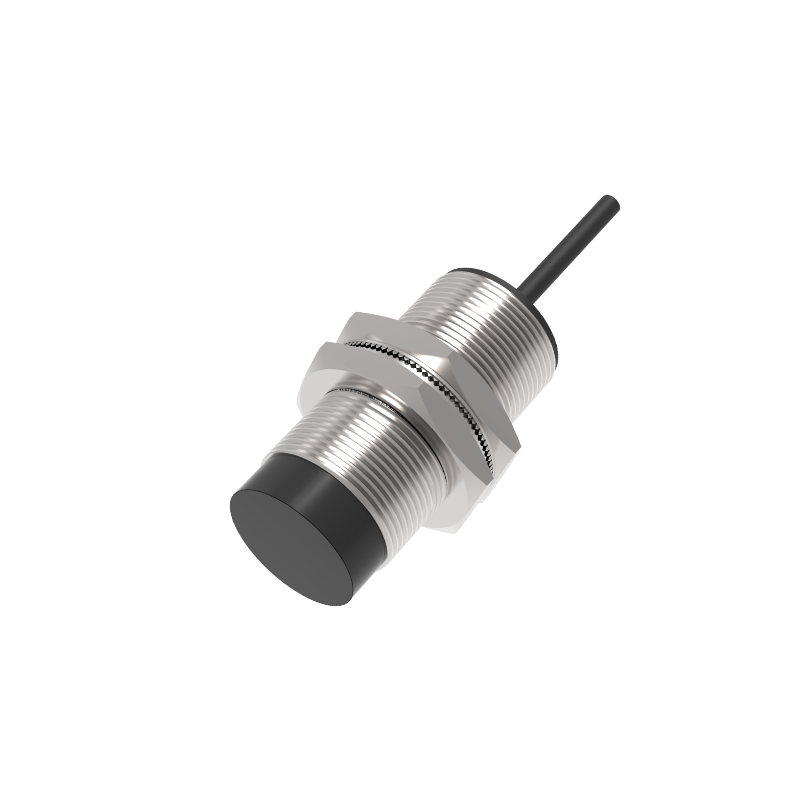

TSN30-15PC — Inductive sensor M30, non-flush, 15 mm, PNP NC, cable 2 m, 3 cores
Manufacturer: Akusense · Code: TSN30-15PC
€59.11 incl. VAT / pc€49.26 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TS |
| Version | short |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M30 |
| Mounting | Non-flush |
| Measuring range, mm | 15 |
| Range | Sn = 15 mm |
| Assured operating distance, mm | 12 |
| Output | PNP |
| Output function | NC |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 150 |
| Frequency, Hz | 150 |
| Connection | Cable 2 m, 3 cores |
| Connection type | Cable |
| Degree of protection | IP67 |
| Housing material | Nickel-plated brass |
| Sensing face material | PBT |
| Indication | Red LED |
| Protections | reverse polarity, short circuit, overload |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | M30 × 47 mm |
| Weight, g | 108 |
| Repeatability | ≤ 3 % |
| Hysteresis | ≤ 15 % |
| Included | Nuts |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
