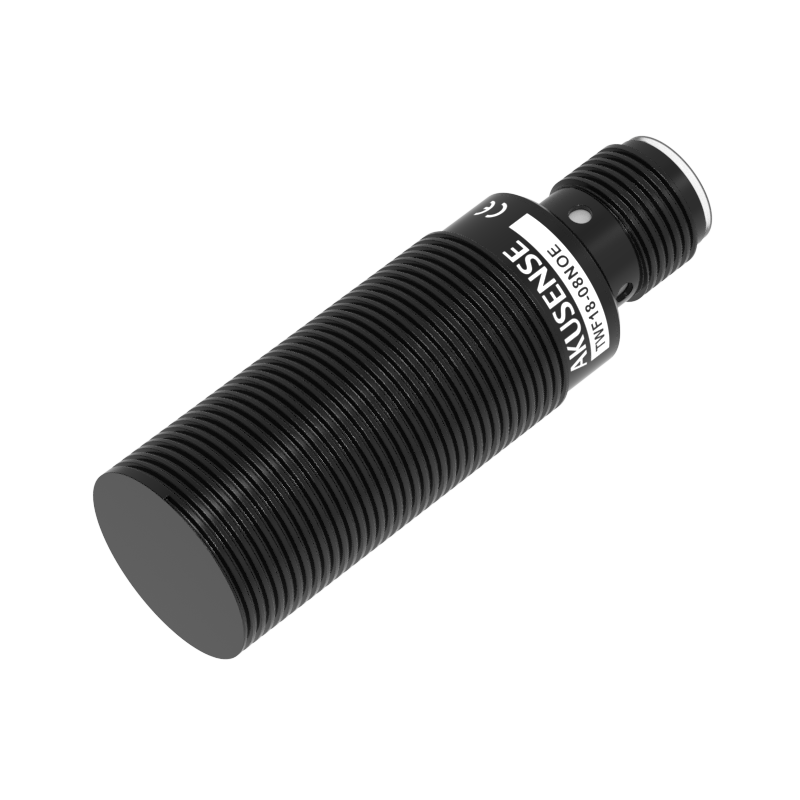

TWF18-08NCE — Inductive sensor M18, flush, 5 mm, NPN NC, connector M12, 4 pins
Manufacturer: Akusense · Code: TWF18-08NCE
€95.84 incl. VAT / pc€79.87 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Inductive sensors |
|---|---|
| Series | TW |
| Version | weld-spatter resistant |
| Operating principle | Inductive |
| Housing shape | Cylindrical, threaded |
| Size | M18 |
| Mounting | Flush |
| Measuring range, mm | 5 |
| Range | Sn = 5 mm |
| Assured operating distance, mm | 4 |
| Output | NPN |
| Output function | NC |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 50 |
| Frequency, Hz | 2000 |
| Connection | M12 connector, 4-pin |
| Connection type | M12 connector |
| Degree of protection | IP67 |
| Housing material | Nickel-plated brass with PTFE coating |
| Sensing face material | LCP |
| Indication | Yellow LED |
| Protections | reverse polarity, short circuit, overload |
| Operating temperature | −30 … +70 °C |
| Min. temperature, °C | -30 |
| Max. temperature, °C | 70 |
| Dimensions | M18 × 57,2 mm |
| Weight, g | 42 |
| Repeatability | < 2 % |
| Hysteresis | 3–10 % |
| Included | Nuts |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
