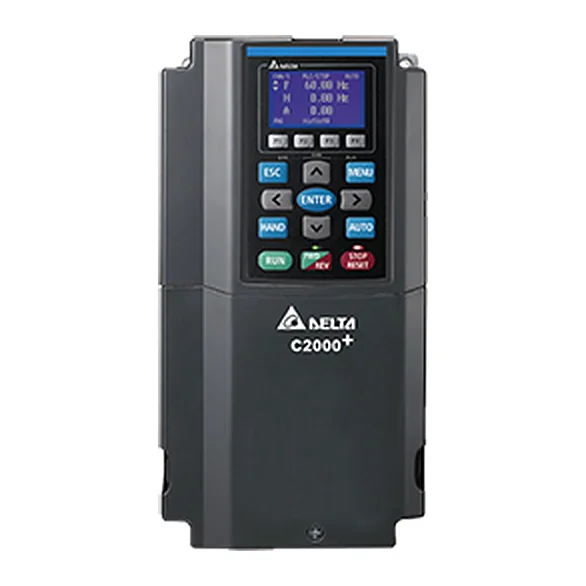

VFD040C4EA-21 — Frequency inverter VFD-C2000+, 4 kW, 460 V AC, 3ph

Manufacturer: Delta Electronics · Code: VFD040C4EA-21

€860.66 incl. VAT / pc€717.22 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

VFD040C4EA-21 — VFD-C2000+ vector control AC drive, 4 kW, 460Vac 3ph. FOC vector control, built-in PLC, STO, dual rating HD/SHD, IP20. Rated current: HD 10.5 A / SHD 9 A.

Technical data

Series	VFD-C2000+
Power, kW	4
Power supply	460 V AC, 3ph
HD current, A	10,5
SHD current, A	9
Communication	RS-485 Modbus — built-in; optional cards: EtherNet/IP, Modbus TCP, PROFINET, PROFIBUS DP, DeviceNet, EtherCAT, CANopen (EMC-COP01)
STO	built-in (EN / IEC 61800-5-2)
EMC filter	built-in for frames A–C; optional for the others
Options	PG encoder cards (EMC-PG01 / PG02), I/O extension cards, CANopen card EMC-COP01, KPC-CC01 digital keypad, braking module and resistor, AC / DC reactors
Certificates	CE (LVD 2014/35/EU EN 61800-5-1; EMC EN 61800-3), UL 508C, cUL CAN/CSA C22.2 No.14-13 and No.274, RCM, KC, EAC, SEMI F47-0706, GB 12668.3, WEEE 2012/19/EU, RoHS 2011/65/EU; STO: TÜV Rheinland, IEC 62061 / IEC 61508 SIL CL2, EN ISO 13849-1 Cat. 3 PL d
Tariff code (CN/TARIC)	8504 40 95 (8504409590)
Import duty from third countries	0 %
