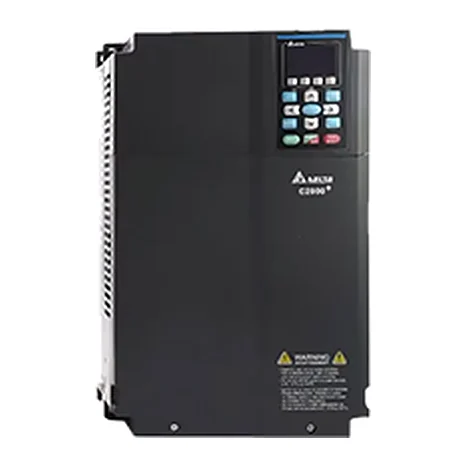

VFD220C23A-21 — Frequency inverter VFD-C2000+, 22 kW, 230 V AC, 3ph
Manufacturer: Delta Electronics · Code: VFD220C23A-21
€2,124.60 incl. VAT / pc€1,770.50 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
VFD220C23A-21 — VFD-C2000+ vector control AC drive, 22 kW, 230Vac 3ph. FOC vector control, built-in PLC, STO, dual rating HD/SHD, IP20. Rated current: HD 90 A / SHD 75 A.
Technical data
| Series | VFD-C2000+ |
|---|---|
| Power, kW | 22 |
| Power supply | 230 V AC, 3ph |
| HD current, A | 90 |
| SHD current, A | 75 |
| Communication | RS-485 Modbus — built-in; optional cards: EtherNet/IP, Modbus TCP, PROFINET, PROFIBUS DP, DeviceNet, EtherCAT, CANopen (EMC-COP01) |
| STO | built-in (EN / IEC 61800-5-2) |
| EMC filter | external (optional) |
| Options | PG encoder cards (EMC-PG01 / PG02), I/O extension cards, CANopen card EMC-COP01, KPC-CC01 digital keypad, braking module and resistor, AC / DC reactors |
| Certificates | CE (LVD 2014/35/EU EN 61800-5-1; EMC EN 61800-3), UL 508C, cUL CAN/CSA C22.2 No.14-13 and No.274, RCM, KC, EAC, SEMI F47-0706, GB 12668.3, WEEE 2012/19/EU, RoHS 2011/65/EU; STO: TÜV Rheinland, IEC 62061 / IEC 61508 SIL CL2, EN ISO 13849-1 Cat. 3 PL d |
| Tariff code (CN/TARIC) | 8504 40 95 (8504409590) |
| Import duty from third countries | 0 % |
