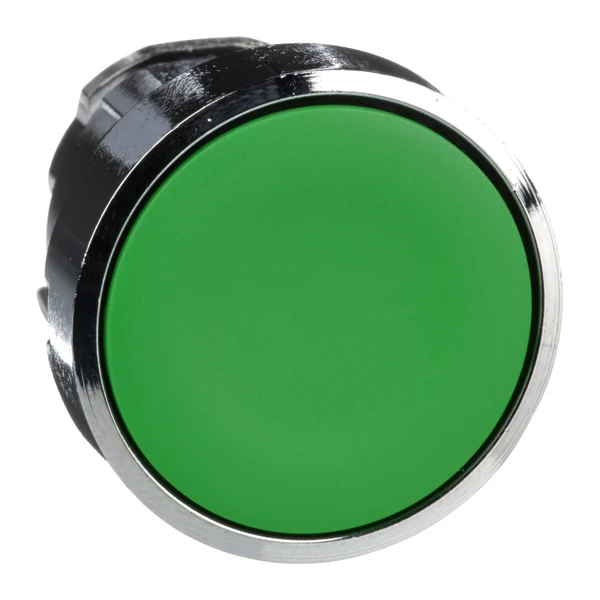

ZB4BA3 — Pushbutton head Ø22, metal, flush, green, momentary, non-illuminated (Salzer SA22-BA3)
Code: ZB4BA3
€2.22 incl. VAT / pc€1.85 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Ø22 button head, metal, flat, green, with spring return (no latching), non-illuminated. The head is mounted in a Ø22 mm hole and is supplied with a SA22 base and contact elements 1 NO (PBE10 / HBE101) or 1 NC (PBE01 / HBE102). Dimensions – see drawing.
Technical data
| Group | Push buttons and push-button heads |
|---|---|
| Product type | Push-button head |
| Actuator | flush |
| Colour | green |
| Illumination | non-illuminated |
| Action | spring return (momentary) |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
