DMV1000

DMV1000

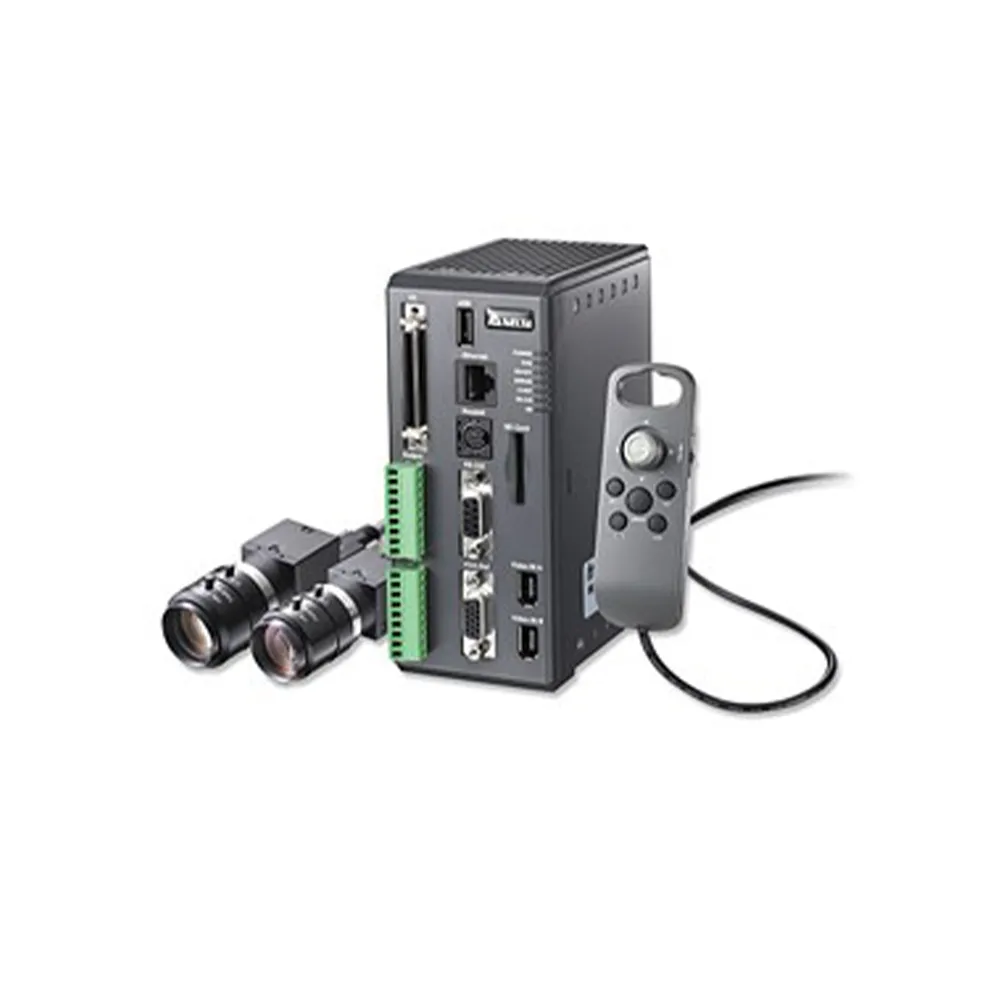

Delta Machine Vision System DMV1000 Series provides a user-friendly interface for image processing. In easy steps, the DMV1000 series captures images via an IEEE 1394 digital camera with a high-speed transmission capacity of 400 Mbps. After capturing images, the built-in high-speed image processing system simulates various inspection functions, including area detection, edge position, distance, counting, angle, spot, spot, comparison, OCV, coordination and edge angle, meeting the requirements for a variety of visual inspection applications.

Request a quote

or: +359 32 395 989 · sales@mechatronics.bg

Price, availability and lead time on request — for companies and individuals.

Categories: , Tags: , ,

DMV1000

The DMV1000 series features intelligent image processing and also supports a variety of I/O input and output interfaces to connect external sensors, trigger light sources, cameras, data links, and more, reducing hardware installation costs. The DMV1000 series adopts the most commonly used industrial communication protocols, including RS-232, RS-485, industrial Ethernet and I/O communication interfaces, allowing inspection data and results to be transmitted quickly and accurately to the master controller. In addition, the DMV1000 series offers a variety of accessories including cameras, lenses, light sources and more for users to build a highly accurate, flexible and networked machine vision system.

Features & Benefits

  • A basic machine vision system that supports max. 2IEEE1394 Mono cameras
  • Programs, parameters, inspection images and results recorded and stored on SD cards
  • Easy settings and joystick operation
  • Interface terminal and 50-pin input/output
  • Built-in tools for developing vision inspection functions, without the need for complex program editing
  • Higher system reliability, better than PC-based systems
  • Compact design saves installation space
  • Interface: Provides 9-pin input terminal, 9-pin output terminal and 50-pin I/O mixed terminal.
  • Ethernet: Connects a PC or PLC via Ethernet for data/image transmission and setup.
  • Keyboard: Configures and controls compatibility with the DMV system
  • SD memory card: Stores the DMV setup process, parameters, inspection results and captured images.
  • RS-232: Quickly connects to Delta or other brand controllers without the need for other programming languages.
  • Camera: Expandable to two 1394a cameras.
  • Display Output: Standard SVGA display output

Applications

  • Electronics                Printed Circuit Board (PCB) positioning
  • Semiconductors        IC positioning Inspection
  • Machine Tools           SMT socket blockage inspection
  • Automotive                Inspection of automobile A/C buttons
  • Rubber & Plastics     Plastic bottle cap positioning
  • Packaging                 Package barcode inspection
  • Printing                      Inspection of ink load for printing plates
  • Pharmaceuticals       Verification of expiration date (EXP) on medication bottles

Documents:

   DMV1000 manual

DMV1000 manual
