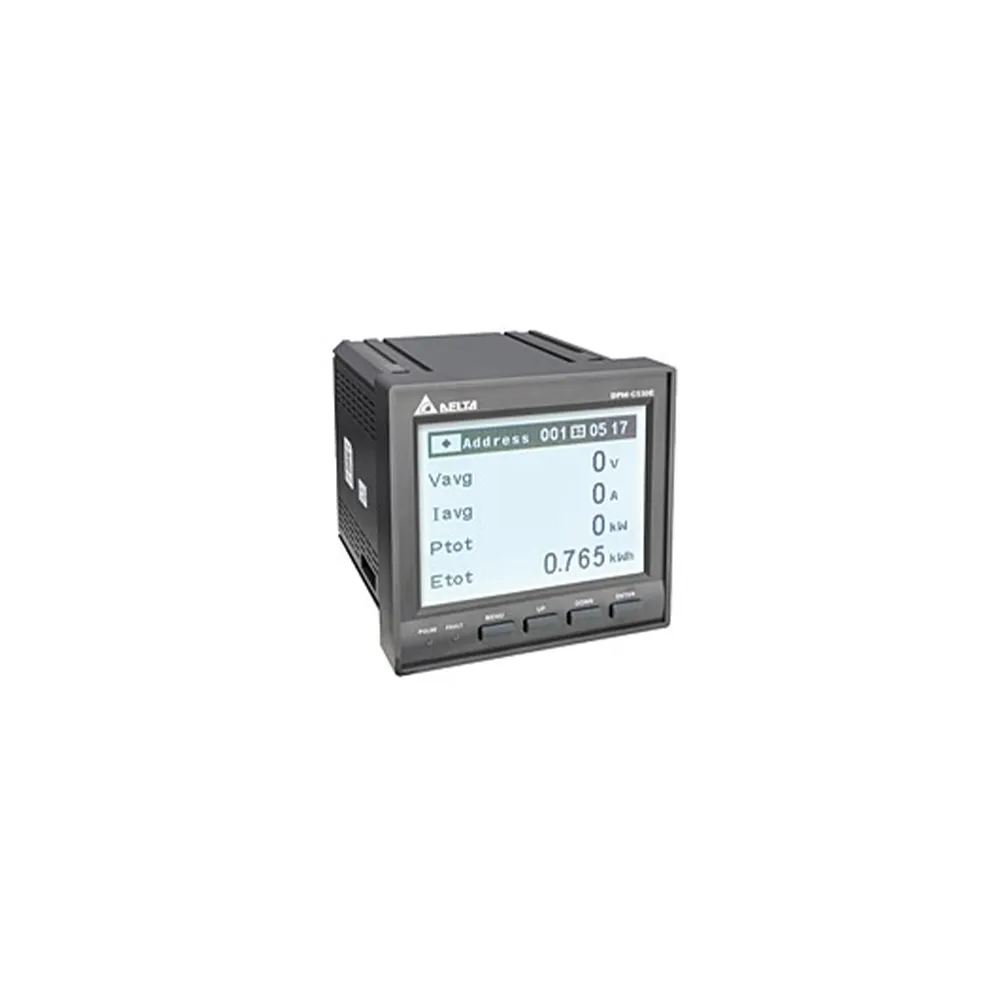

DPM-C530

DPM-C530

DPM-C530

The Digital Power Meter offers all the measurement capabilities required to monitor current, voltage, power range and four-quadrant metering in an electrical installation. Its main function is to measure various electrical energy values and power quality parameters, including power factory, harmonics, and current/voltage unbalance. Delta’s Power Meter can also identify equipment malfunctions, energy waste, and other power quality issues for purposes such as analyzing electricity consumption and managing energy usage.

Request a quote

or: +359 32 395 989 · sales@mechatronics.bg

Price, availability and lead time on request — for companies and individuals.

Categories: ,

DPM

Delta’s Advanced Multifunction Meter DPM-C530 offers precise measurement of electrical energy values and power quality parameters, including power factor, harmonics, and current / voltage unbalance. It also provides off-limit alarms and history log functions.

  • Supports alert setting, auto meter setting, and hourly electricity calculations
  • Multi-rate meter, record saving and default max. / min. value setting
  • Eco-mode meter and parameter group setting
  • Supports MODBUS and BACnet MS/TP protocols.  Suitable for SCADA and energy management systems, factory and building automation systems and sectors where power quality is critical
  • Total Harmonic Distortion：2nd ~ 31st

High-precision Power Quality and Electricity Parameter Measurement

  • High-precision Class 0.5S bidirectional energy and electricity parameter measurement, complies with IEC 62053 and CNS 14607 criteria

Large LCD Screen

  • Dot matrix LCD display with 198 x 160 dots, supports clear reading and display of English (capital and lowercase letters), Traditional Chinese, Simplified Chinese, Japanese, and other languages

Parameter Grouping Function

  • The parameter group contains all needed energy data for master controllers (including PLCs, SCADA and EMS) to acquire and reduce reading time, enhancing real-time data accessibility
  • Combines several discontinuous register addresses to one continuous address, reducing commands to achieve high-efficiency data acquisition of the master controllers (SCADA and PLC)
  • All energy data can be combined as a parameter group for master controllers to acquire and reduce reading time, enhancing real-time data accessibility

Features & Benefits

  • Built-in Ethernet port supports Modbus TCP
  • Panel mount installation with display
  • Measuring current via external CT (current transformer)
  • Web based parameter configuration
  • Advanced power management functions

Applications

The DPM-C530 is suitable for: energy management, medium or low voltage distribution systems, smart switch cabinets, energy management systems, factory automation systems, building automation systems, railway energy management systems, electric heating systems, wind power systems, energy storage systems, electric grid measurement, and energy quality analysis.

Documents:

   DPM catalogue

DPM catalogue
