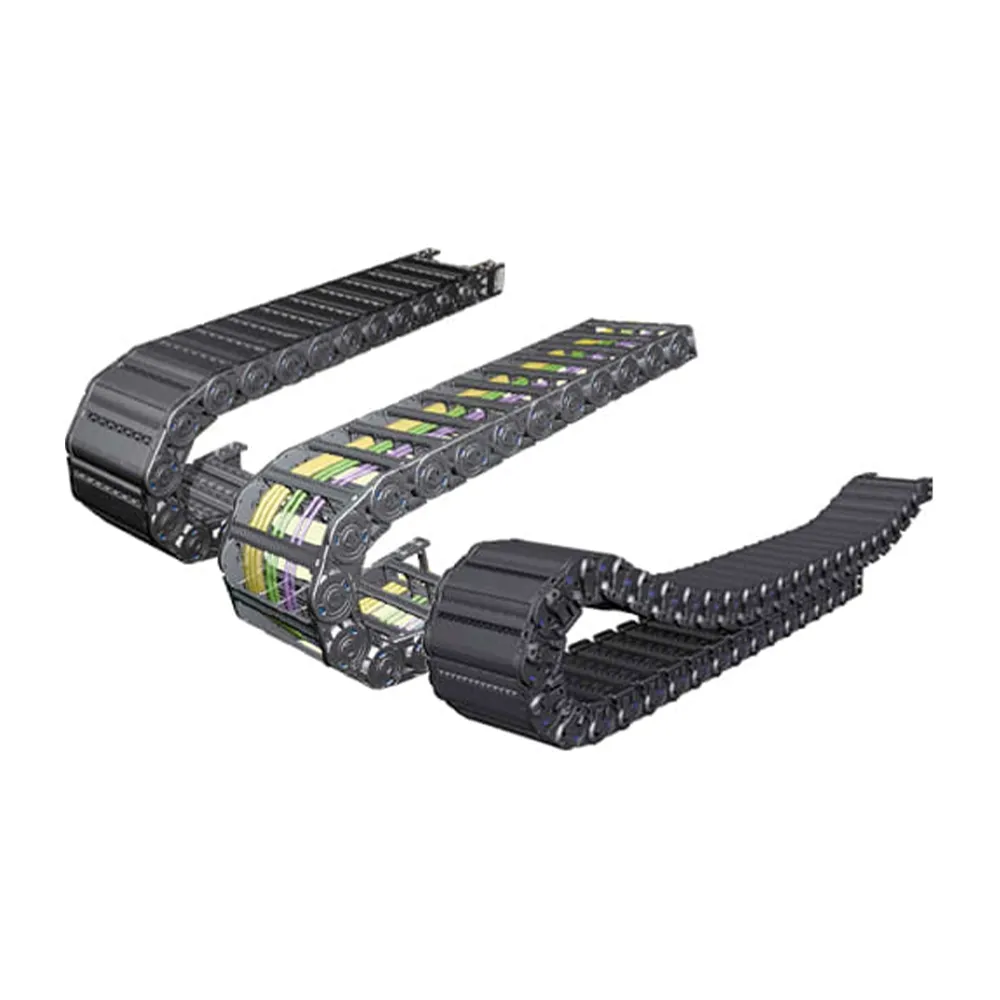

Middle cable drag chains

Medium-sized, for general industrial use:

  • link length from 36 to 50 mm;
  • connection width from 35 to 200 mm;
  • bending radius from 50 to 200 mm;
  • movement speed up to 10 m/s;
  • temperature range from -30 C to +130 o C;
  • noise level from 40 to 43 dB.
Request a quote

or: +359 32 395 989 · sales@mechatronics.bg

Price, availability and lead time on request — for companies and individuals.

Categories: ,

Middle cable drag chains

Medium-sized cable drag chains are for general industrial use: they guide and protect the power and signal cables and hoses of the moving parts of machines, so that they do not twist, bend below the minimum radius or wear.

  • Link length from 36 to 50 mm
  • Width from 35 to 200 mm
  • Bending radius from 50 to 200 mm
  • Travel speed up to 10 m/s
  • Temperature range from −30 to +130 °C
  • Noise level from 40 to 43 dB

The bending radius is chosen according to the thickest cable, and the width according to the cables and hoses laid in one row. For long horizontal strokes, see the sliding system. Send us the stroke and the cable list, and we will suggest the chain size.
