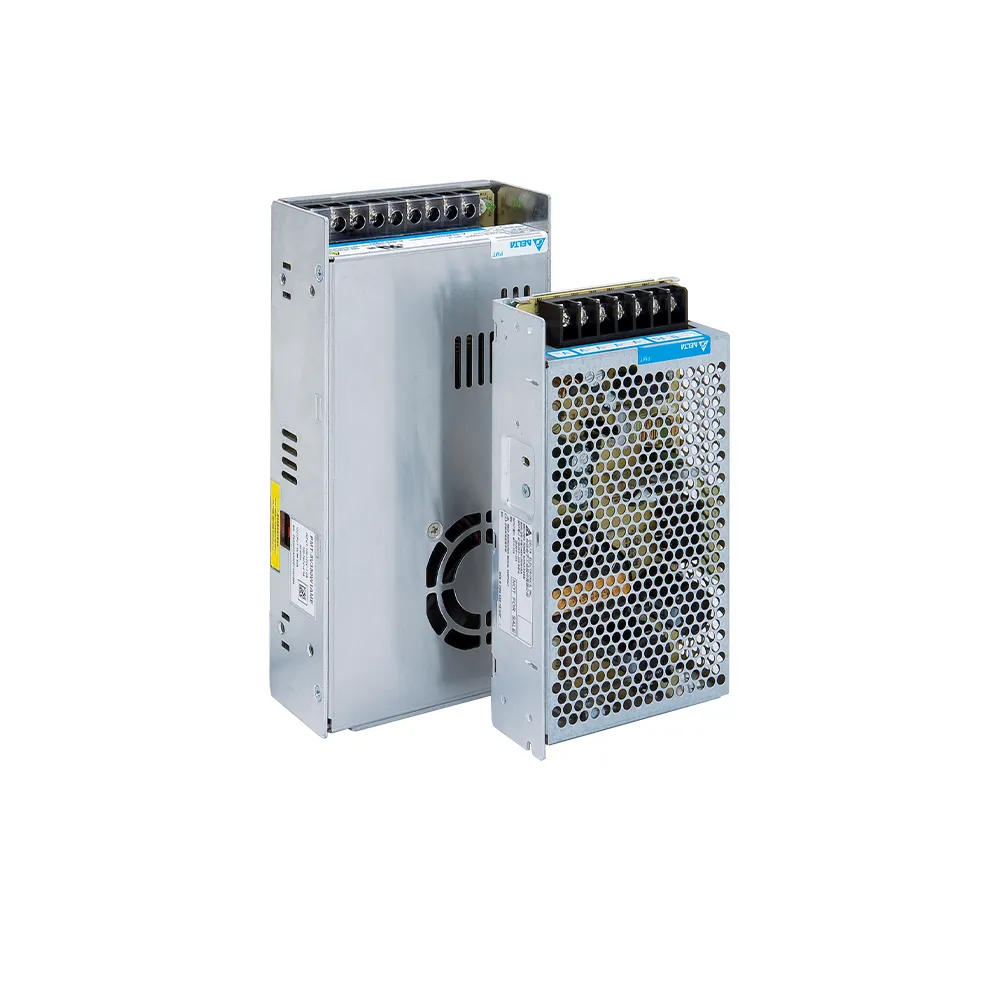

PMT2
Panel mounting
Switching power supplies have internal protection against overvoltage, overload and overheating.
We offer a range of panel mount power supplies for a variety of needs. The latest PMT2 series has a slim form factor and is competitively priced for general industrial applications.
The sources are manufactured in accordance with the strict requirements of industrial working conditions.
Approvals for household appliances according to IEC/EN 60335-1, IEC/EN 61558-1 и IEC/EN 61558-2-16
- No power without load
- Low profile design: PMT2 with 30mm height
- Overvoltage category III, pollution degree 3
- single-phase modular power supplies;
- output voltages 4/5/12/24 V DC
- output power 35-350W;
- aluminum body (selected models in Open Frame - PMB version);
- vibration and shock resistance according to standard IEC60068-2-6
- universal AC input voltage range (selected models with switch between 115V and 230V);
- short circuit, overvoltage, overload and temperature protection;
- operation in a wide temperature range from -10 to 70°C; possible start at -40°C.
- models with two outputs available (12V/5V and 24V/5V options).
- reliable construction with an expected service life of not less than 10 years
- average uptime > 200,000 hours
- panels provide stable, undiminished power output over an input voltage range of 90 to 264 VAC
- Efficiency >85%
- produced in accordance with the RoHS standard (directive 2011/65/EU
Applications
They are used in a wide variety of industries worldwide and allow for galvanic isolation of control cabinet circuits as well as power stabilization, thereby eliminating interference.
