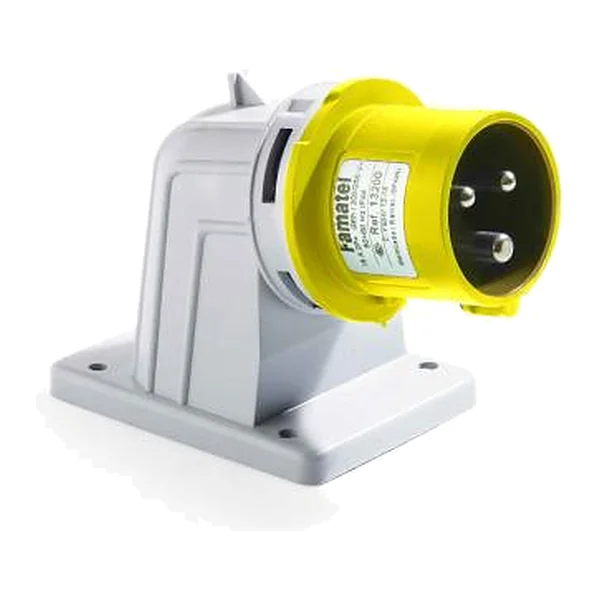

13151 — Industrial surface-mounted plug 3P+T 16A 110V IP44 - Angled 90º

13151 — Industrial surface-mounted plug 3P+T 16A 110V IP44 - Angled 90º

Manufacturer: Famatel · Code: 13151

€5.23 incl. VAT / pc€4.36 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall plug, 90° angled. 3P+E, 16 A, 110 V~ 50/60 Hz, 4-hour protective contact, yellow color. Protection rating IP44; screw terminals; body made of polyamide PA6 and ABS; nickel-plated brass contacts; flexible conductor cross-section 1–2.5 mm²; dimensions 120 × 66 × 90 mm (H × W × D).

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED PLUGS IP44| 16A / 32A – Angled 90º SpeedPRO
Product typeWall-mounted plug
Number of poles4 (3P+E)
Voltage, V110
Current, A16
Size120 × 66 × 90 mm
Degree of protectionIP44
Colouryellow
Min. qty4
Carton48
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
