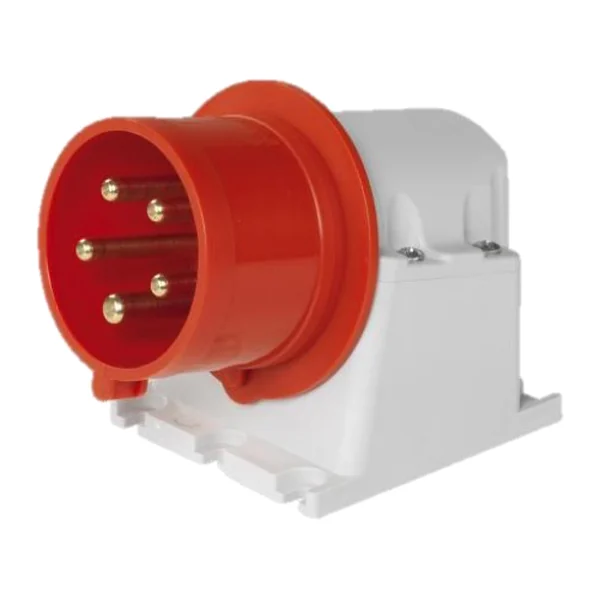

13397 — Industrial plug, surface-mounted 3P+T+N 32A 400V IP44 - Angled 90º ECO

13397 — Industrial plug, surface-mounted 3P+T+N 32A 400V IP44 - Angled 90º ECO

Manufacturer: Famatel · Code: 13397

€8.28 incl. VAT / pc€6.90 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall plug, ECO. 3P+N+E, 32 A, 400 V~ 50/60 Hz, protected contact with a 6-hour timer, red color. Protection class IP44; screw terminals; housing made of polyamide PA6 and ABS; contacts made of nickel-plated brass; flexible conductor cross-section 1–2.5 mm²; weight 241 g. Impact resistance IK08.

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED PLUGS IP44 | 16A / 32A – Angled 90º ECO-SpeedPRO
Product typeWall-mounted plug
Number of poles5 (3P+N+E)
Voltage, V400
Current, A32
Degree of protectionIP44
Colourred
Min. qty3
Carton36
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
