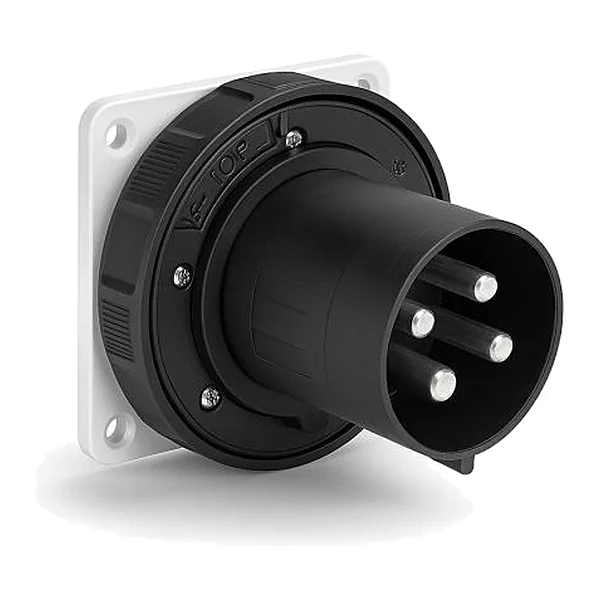

13855 — Industrial panel-mounted plug - straight 3P+T 125A 500V IP66/67

13855 — Industrial panel-mounted plug - straight 3P+T 125A 500V IP66/67

Manufacturer: Famatel · Code: 13855

€47.51 incl. VAT / pc€39.59 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO in-box plug, straight. 3P+E, 125 A, 500 V~ 50/60 Hz, 7-hour protection, black color. Protection rating IP66/IP67; screw terminals; body made of polyamide PA6 and ABS; contacts made of nickel-plated brass; flexible conductor cross-section 16–50 mm²; flange 120 × 120 mm.

Technical data

SectionIndustrial plugs and sockets
GroupPANEL-MOUNTED SOCKETS AND PLUGS IP66/67 | Angled 15º 125A – SpeedPRO
Product typePanel-mounted plug
Number of poles4 (3P+E)
Voltage, V500
Current, A125
Size120 × 120 mm (flange)
Degree of protectionIP66/IP67
Colourblack
Min. qty1
Carton3
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
