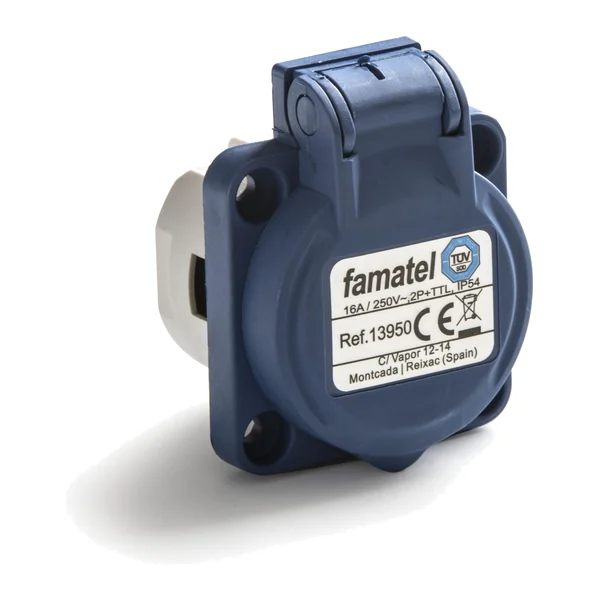

13950 — Industrial socket, panel-mounted 2P+E 16A 230V IP44-IP54 - 50x50 SCHUKO

13950 — Industrial socket, panel-mounted 2P+E 16A 230V IP44-IP54 - 50x50 SCHUKO

Manufacturer: Famatel · Code: 13950

€2.41 incl. VAT / pc€2.01 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

Schuko socket for industrial use (SpeedPRO). Schuko 2P+E, 16 A, 250 V, blue color. Protection class IP54; screw terminals; side horizontal connection; mounting without nuts; flexible conductor cross-section 1–2.5 mm²; flange 50 × 50 mm; weight 47 g.

Technical data

SectionIndustrial plugs and sockets
GroupSCHUKO SOCKETS AND PLUGS IP54/IP68 55x57.5 – INDUSTRIAL SpeedPRO
Product typePanel-mounted socket
Number of poles3 (2P+E)
Voltage, V250
Current, A16
Size50 × 50 mm (flange)
Degree of protectionIP54
Colourblue
Min. qty30
Carton180
Net weight, kg0,044
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
