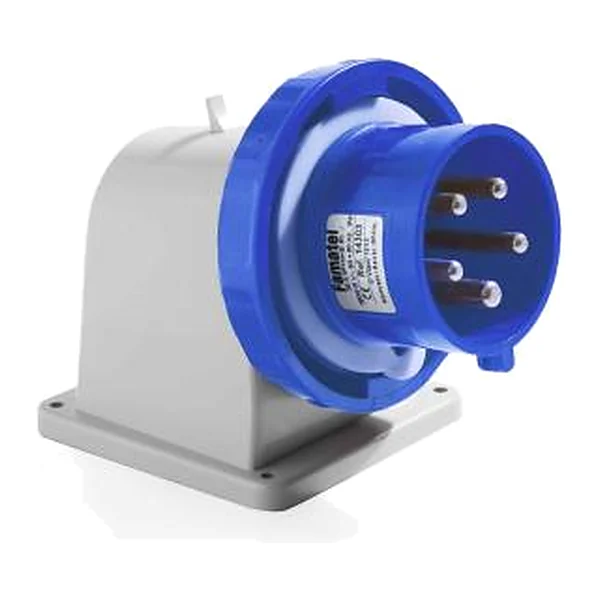

14254 — Industrial surface-mounted plug 3P+T 32A 230V IP67 - Angled 90º ECO

14254 — Industrial surface-mounted plug 3P+T 32A 230V IP67 - Angled 90º ECO

Manufacturer: Famatel · Code: 14254

€4.31 incl. VAT / pc€3.59 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall plug, 90° angled. 3P+E, 32 A, 230 V~ 50/60 Hz, 9-hour protective contact, blue color. Protection rating IP67; screw terminals; body made of polyamide PA6 and ABS; nickel-plated brass contacts; flexible conductor cross-section 2.5–6 mm²; dimensions 160 × 90 × 110 mm (H × W × D).

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED PLUGS IP67 | 16A / 32A – Angled 90º ECO-SpeedPRO
Product typeWall-mounted plug
Number of poles4 (3P+E)
Voltage, V230
Current, A32
Size160 × 90 × 110 mm
Degree of protectionIP67
Colourblue
Min. qty2
Carton24
Net weight, kg0,285
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
