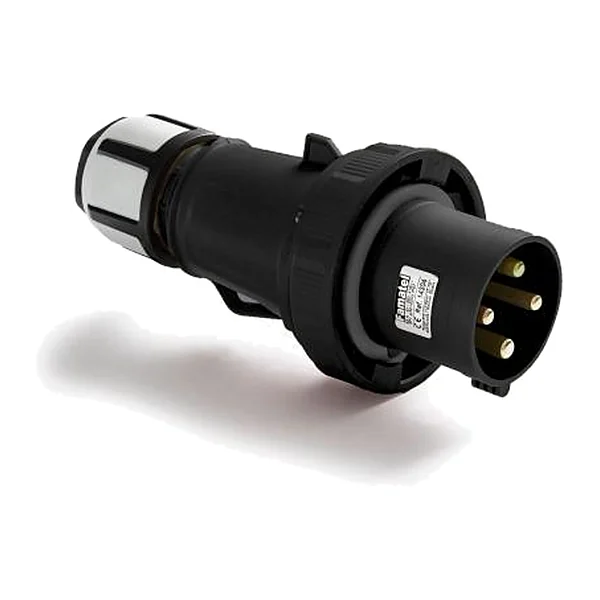

14405 — Industrial portable plug 3P+N+T 63A 500V IP66/67

14405 — Industrial portable plug 3P+N+T 63A 500V IP66/67

Manufacturer: Famatel · Code: 14405

€28.52 incl. VAT / pc€23.77 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO plug. 3P+N+E, 63 A, 500 V~ 50/60 Hz, protected contact with a 7-hour delay, black color. Protection rating IP66/IP67; terminals with internal hex socket screws; body made of polyamide PA6; nickel-plated brass contacts with pilot contact; stainless steel screws; self-adjusting two-component cable gland.

Technical data

SectionIndustrial plugs and sockets
GroupPORTABLE PLUGS IP66/67 | 63A – SpeedPRO
Product typePortable plug
Number of poles5 (3P+N+E)
Voltage, V500
Current, A63
Sizeø114 × 260 mm
Degree of protectionIP66/IP67
Colourblack
Min. qty2
Carton2
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
