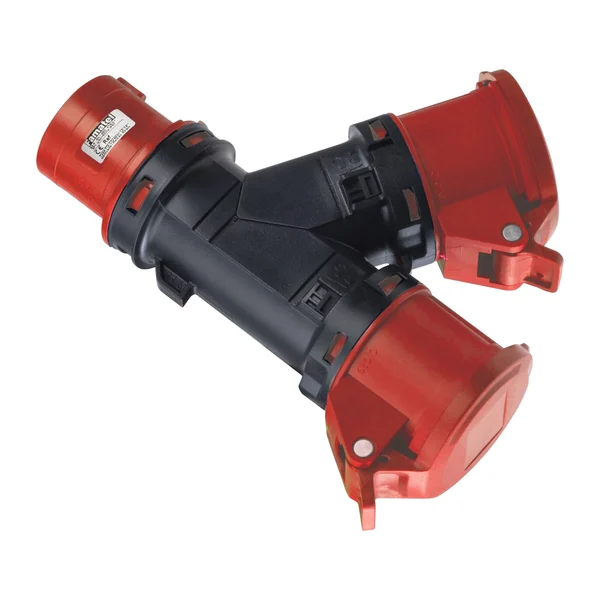

15001 — Industrial adapter 1 input and 2 outputs 3P+T 16A 400V IP54
Manufacturer: Famatel · Code: 15001
€21.60 incl. VAT / pc€18.00 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO adapter, 1 input, 2 outputs. 3P+E, 16 A, 400 V~ 50/60 Hz, protected contact with a 6-hour timer, red color. Protection rating IP54; polyamide PA6 contact holder; ABS housing; brass contacts; dimensions 190 × 167 mm; weight 450 g. Impact resistance IK07; operating temperature −25…+40 °C.
Technical data
| Section | Industrial adaptors |
|---|---|
| Group | INDUSTRIAL ADAPTORS IP54/IP67 | 16A/32A - 1 input and 2 outputs SpeedPRO |
| Product type | Adaptor |
| Number of poles | 4 (3P+E) |
| Voltage, V | 400 |
| Current, A | 16 |
| Size | 190 × 167 mm |
| Degree of protection | IP54 |
| Colour | red |
| Number of sockets | 2 |
| Min. qty | 1 |
| Carton | 4 |
| Net weight, kg | 0,45 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
