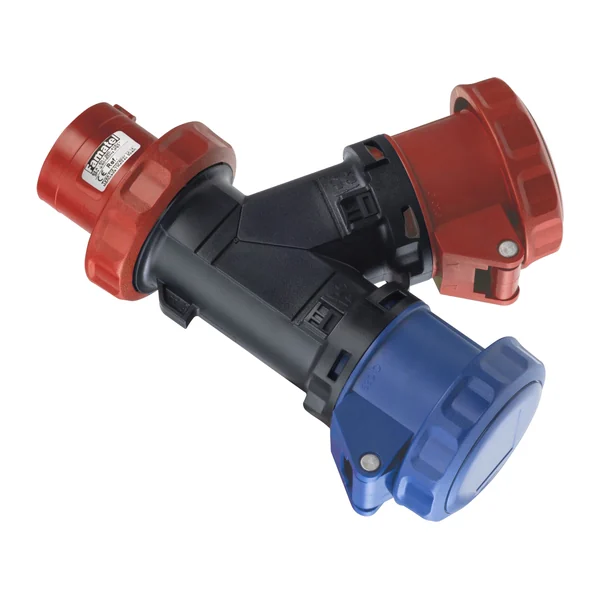

16006 — Industrial adapter 1 input and 2 outputs 3P+T 16A 400V / 2P+T 400V IP67

16006 — Industrial adapter 1 input and 2 outputs 3P+T 16A 400V / 2P+T 400V IP67

Manufacturer: Famatel · Code: 16006

€14.98 incl. VAT / pc€12.48 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO adapter with 1 input and 2 outputs: input - 3P+N+E plug 16 A 400 V (IP67); outputs - 1 3P+E socket 400 V and 1 2P+E socket 230 V, 16 A. Poles 3P+N+E / 3P+E / 2P+E, 16 A, 230/400 V~ 50/60 Hz, color blue. Protection rating IP67. Contact holder made of polyamide PA6, housing made of ABS, contacts made of brass.

Technical data

SectionIndustrial adaptors
GroupINDUSTRIAL ADAPTORS IP54/IP67 | 16A/32A - 1 input and 2 outputs SpeedPRO
Product typeAdaptor
Number of poles5 (3P+N+E) / 4 (3P+E) / 3 (2P+E)
Voltage, V230/400
Current, A16
Size170 × 162 mm
Degree of protectionIP67
Colourblue
Number of sockets2
Min. qty1
Carton4
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
