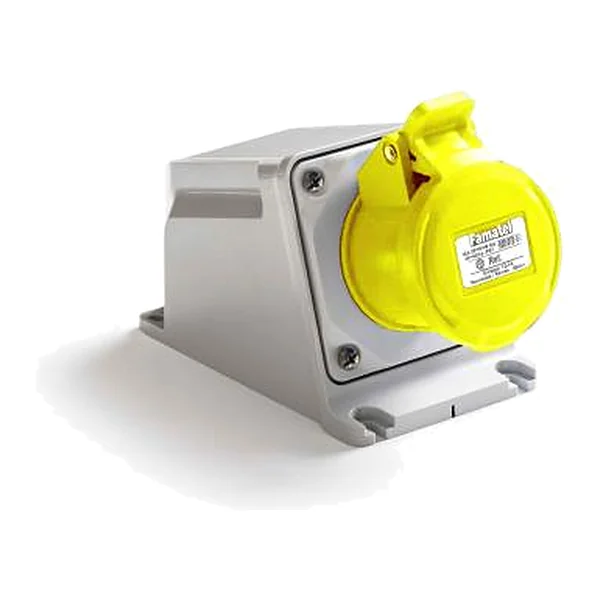

23190 — Industrial surface-mounted socket, angled 10° 2P+T 16A 110V IP44/54

23190 — Industrial surface-mounted socket, angled 10° 2P+T 16A 110V IP44/54

Manufacturer: Famatel · Code: 23190

€6.92 incl. VAT / pc€5.77 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall contact, angled 10°. 2P+E, 16 A, 110 V~ 50/60 Hz, protected contact for 4 h, yellow color. Protection class IP44/IP54; screw terminals; body made of polyamide PA6 and ABS; contacts made of brass; rear cable entry; flexible conductor cross-section 1–2.5 mm²; dimensions 158 × 81 × 97 mm (H × W × D).

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS IP44/54 | 16A / 32A – SpeedPRO
Product typeWall-mounted socket
Number of poles3 (2P+E)
Voltage, V110
Current, A16
Size158 × 81 × 97 mm
Degree of protectionIP44/IP54
Colouryellow
Min. qty3
Carton36
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
